1 / 10EP EFL252X5 electric forklift
A 2.5 tonne, 80V lithium-ion forklift with a modular battery you can double from 280Ah to 560Ah. Built for medium to heavy work in yards, factories and building sites.
- Lift capacity
- 2,500 kg
- Max lift height
- 6.0 m
- Lithium-ion battery
- 80V 280 or 560Ah
- Travel speed unladen
- 17 km/h
Ask us for a price and a delivery date.
Or call 01 5267 411 (ROI) or 028 3833 7038 (NI).
- Ireland's exclusive EP Equipment dealer
- Buy, or hire on a 12-month contract
- Delivered and serviced by our own engineers
- Download the EFL252X5 datasheet (PDF)
- See all EP 4-wheel forklifts
Who the EFL252X5 suits, and when to pick another model
Built for
- Medium to heavy duty yard and factory work
- Construction sites and rough, uneven ground
- Loads up to 2.5 t and racking up to 6 m
- Sites whose workload changes by season or shift
- Replacing a 2.5 t diesel or LPG truck
Look at another EP model if
- Your work is lighter and lifts lowerEFL252X2entry model, 4.8 m, 80V 100Ah
- Your loads go up to 3 tEFL302X53 t, 6 m, 280Ah
- You need up to 3.8 tEFL382X53.8 t, 6 m, 280Ah
- Your loads stay under 2 tEFL2032 t, pneumatic tyres, 80V 230Ah
Not sure? Tell us what you lift and we'll recommend the right truck.
What makes the EFL252X5 work
The X5 is EP's step up from the entry X2, with more power and a battery that grows with your workload. Here's what it means in practice.
Battery that grows with you
The lithium-ion battery is built from 80V, 280Ah modules. Run one module, or fit a second for 560Ah when shifts get longer or the busy season arrives.
Performance close to diesel
A 16 kW drive motor and 24 kW lift motor give 17 km/h unladen and 25% gradeability. Drivers coming off an IC truck will not feel short-changed.
Built for rough ground
Pneumatic tyres and 150 mm of clearance under the wheelbase handle ramps, potholes and broken surfaces. Sealed electrics keep it working in the wet.
Top up in breaks
Lithium takes opportunity charging without any memory effect or loss of performance. There is no watering and no battery changing.
Room to work
The redesigned cab has an ergonomic seat with armrest, a wide brake pedal and hydraulic steering. A large display keeps the driver informed.
Good visibility
A high-visibility mast and LED lighting help on dull days and in darker corners of the yard. Free lift is 195 mm.
The EFL252X5 in action

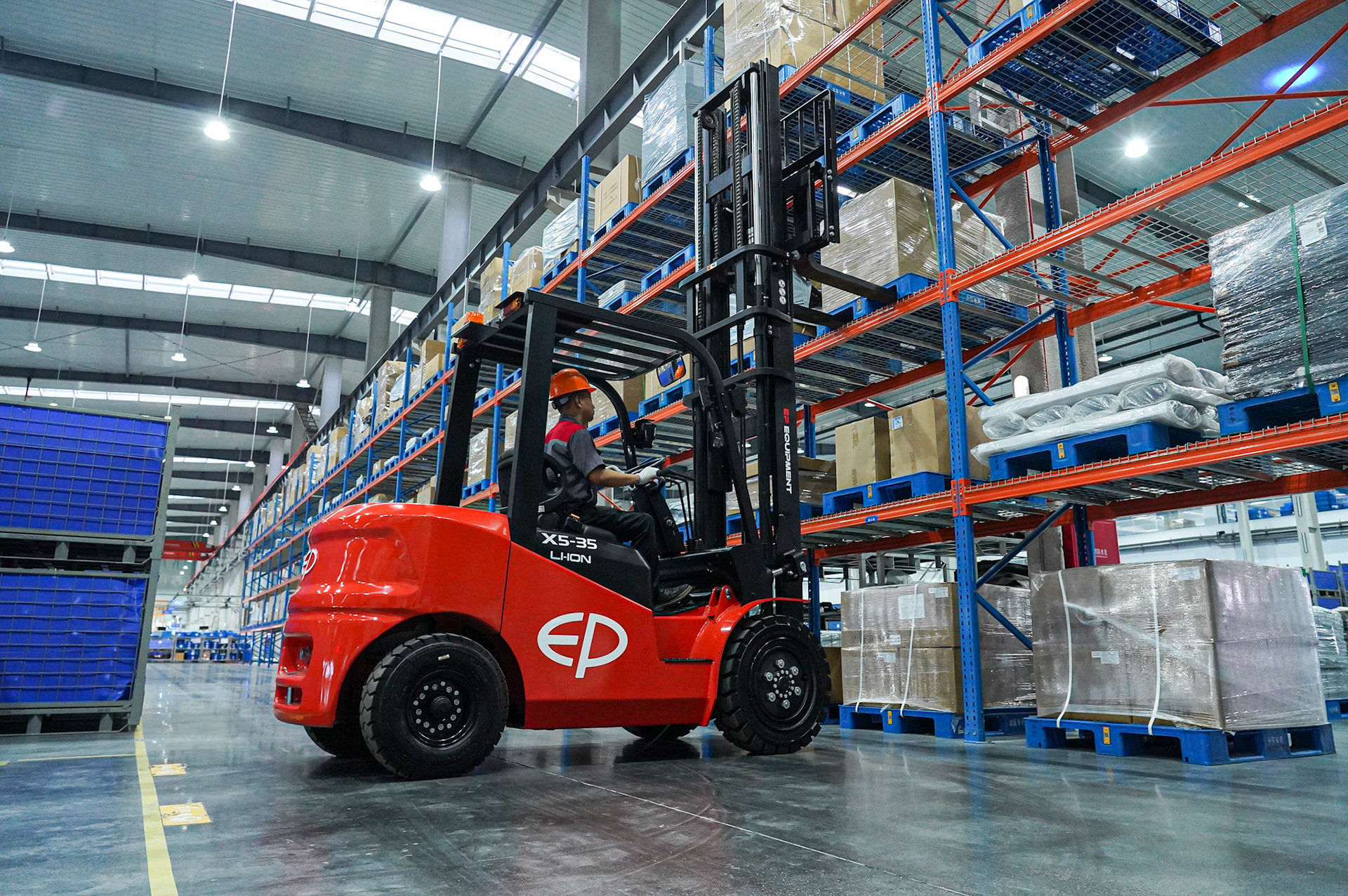

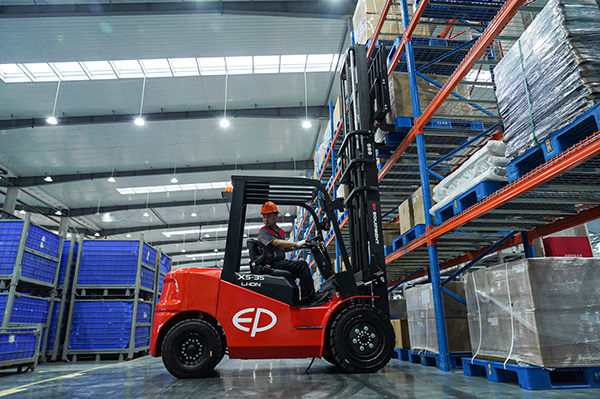

Photos from EP Equipment of the EFL X5 range, the family the EFL252X5 belongs to, at work. Tap a photo to enlarge it.
Pick the battery to match your shifts
Same truck, different battery sizes, so you only pay for the capacity you'll use.
One module. Most single shifts, especially with top-up charging in breaks.
Long days, multi-shift work or busy seasons, by adding a second module.
Not sure which size? Tell us your shift pattern and we'll recommend one.
EFL252X5 technical specifications
Figures from EP's datasheet for the standard truck. Mast, battery and options change some values. Source: EP's EFL252X5 datasheet.
Capacity and lifting11
| Rated capacity | 2,500 kg |
|---|---|
| Max lift height | 6,000 mm |
| Tilt of mast/fork carriage forward/backward | 6° / 10° |
| Height, mast lowered | 2,090 mm |
| Free lift | 195 mm |
| Lift | 3,000 mm |
| Height, mast extended | 4,065 mm |
| Coupling height | 315 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Operating pressure for attachments | 180 bar |
| Oil volume for attachments | 35ℓ/min |
Dimensions and weight20
| Load centre distance | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork | 495 mm |
| Wheelbase | 1,685 mm |
| Service weight | 3,835 kg |
| Axle loading, laden front/rear | 5679 / 656 kg |
| Axle loading, unladen front/rear | 1711 / 2,124 kg |
| Tread width, front | 975 mm |
| Tread width, rear | 955 mm |
| Height of overhead guard (cabin) | 2,165 mm |
| Seat height relating to SIP/stand height | 1,095 mm |
| Overall length | 3,590 mm |
| Length to face of forks | 2,520 mm |
| Overall width | 1,154 mm |
| Fork dimensions | 40 × 122 × 1,070 mm |
| Fork carriage width | 1,040 mm |
| Ground clearance, laden, below mast | 115 mm |
| Ground clearance, centre of wheelbase | 150 mm |
| Aisle width for pallets 1000×1200 crossways | 3,965 mm |
| Aisle width for pallets 800 × 1200 lengthways | 4,165 mm |
| Turning radius | 2,270 mm |
Performance8
| Travel speed, laden/unladen | 16 / 17 km/h |
|---|---|
| Lift speed, laden/unladen | 0.38 / 0.45 m/s |
| Lowering speed, laden/unladen | 0.54 / 0.56 m/s |
| Max. gradeability, laden/unladen | 17 / 25 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Turnover efficiency according to VDI 2198 | 21.63 |
| Steering design | Hydraulic |
Battery and electrics7
| Drive motor rating S2 60 min | 16 kW |
|---|---|
| Lift motor rating at S3 15% | 24 kW |
| Battery voltage | 80 V |
| Battery nominal capacity K5 | 280 Ah |
| Battery type | Li-Ion |
| Battery weight | 185 kg |
| Energy consumption according to DIN EN 16796 | 7.7 ¹⁾kWh/h |
Tyres and wheels4
| Tyres | Pneumatic |
|---|---|
| Tyre size, front | 7.00-12-12PRmm |
| Tyre size, rear | 18 × 7-8-14PRmm |
| Wheels, number front/rear | 2x/2 x=drive wheels |
Other6
| Manufacturer | EP |
|---|---|
| Model designation | EFL252 × 5 |
| Drive | Electric |
| Operator type | Seated |
| Turnover output according to VDI 2198 | 155 |
| Type of drive unit | AC |
EFL252X5 against similar EP models
The closest EP 4-wheel forklifts by capacity and lift height.
| Spec | EFL252X5This model | EFL253 | EFL253S | EFL253P |
|---|---|---|---|---|
| Capacity | 2,500 kg | 2,500 kg | 2,500 kg | 2,500 kg |
| Max lift height | 6.0 m | 6.0 m | 6.0 m | 6.0 m |
| Battery | 280Ah | 80V / 205Ah | 80V / 230Ah | 80V / 280Ah |
| Turning radius | 2,270 mm | 2,305 mm | 2,305 mm | 2,305 mm |
| Overall width | 1,154 mm | 1,154 mm | 1,154 mm | 1,154 mm |
| Travel speed | 16 / 17 km/h | 11 / 12 km/h | 16 / 17 km/h | 19 / 20 km/h |
| Weight | 3,835 kg | 3,780 kg | 3,955 kg | 4,025 kg |
Buy it, or hire it on a 12-month contract
Buy it new
Own it outright. We supply it from stock or order it new from EP, and deliver it on our own trailer.
See what is in stockHire it
A new EFL252X5 at a weekly price on a 12-month contract, with servicing, repairs and inspections included.
How contract hire worksService and parts
Our own engineers service it, and we hold EP parts in stock. For parts, email parts@clearlift.eu.
Service and repairsQuestions about the EFL252X5
Anything else, call us on 01 5267 411 (ROI) or 028 3833 7038 (NI).
How does the modular battery work?
The battery is made of 80V, 280Ah modules. One module suits most single shifts. Fitting a second gives 560Ah for longer days or multi-shift work.
How is the EFL252X5 different from the EFL252X2?
The X5 lifts to 6.0 m against 4.8 m, travels at 17 km/h against 12 km/h, climbs 25% against 15% unladen, and has a much larger, expandable battery. The X2 is the entry-level choice for lighter work.
Can it handle rough ground?
Yes. Pneumatic tyres, 150 mm of ground clearance and a steel chassis suit ramps, uneven yards and loading docks, and the electrics are sealed for wet weather.
How does it compare with the EFL253?
Both are 2.5 t, 80V lithium trucks lifting to 6.0 m. The X5 runs on pneumatic tyres with a modular 280Ah battery and is quicker at 17 km/h. The EFL253 uses solid tyres, a 205Ah battery and travels at 12 km/h.
Can it replace a diesel or LPG forklift?
The X5 is EP's answer to IC trucks: up to 17 km/h, 25% gradeability unladen and 150 mm ground clearance, with 2.5 t capacity and 6 m lift. Where diesel or LPG ran long shifts, a second 280Ah module (560Ah total) covers the hours. Send us your loads and ground conditions and we'll confirm.
Can I hire the EFL252X5?
Yes, on contract hire, at a weekly price on a 12-month contract, with servicing and repairs included. We don't offer short-term hire. See forklift hire.
How much does the EFL252X5 cost?
It depends on the mast, battery and options you need. Ask for a price and we'll quote it to buy outright or on contract hire.
Who services the EFL252X5?
Our own engineers, from our Navan depot and Portadown office, using EP parts. We look after customers across Ireland and Northern Ireland.
