2000 kg
F4-201
Electric Pallet Truck 2.0T
Contact Us
About the F4-201
The F4 201 takes EP’s F Series platform to the next level with a powerful 48V system, boosting both reliability and efficiency. Equipped with two removable 24V/20Ah Li-ion batteries, this 2.0-ton pallet truck delivers flexibility, fast charging, and zero maintenance. With its compact 400 mm fork face length and lightweight 140 kg build, the F4 201 is designed for versatile applications in warehouses, logistics hubs, and retail.
Get a QuoteDatasheet
Product Application

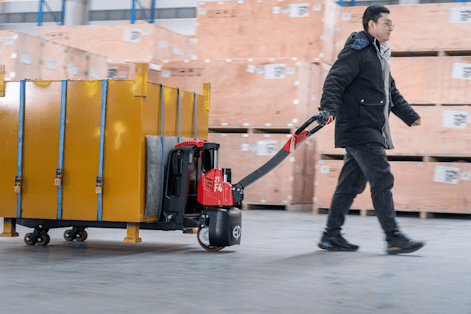

The F4 201 is ideal for operations requiring both strength and maneuverability. Its 2.0-ton load capacity and optional stabilizing wheels make it reliable for handling large or uneven loads. The compact size and reduced weight ensure excellent agility in narrow aisles and confined spaces, while the removable Li-ion batteries support opportunity charging for full-shift availability. Its newly designed square-tube tiller head improves both ergonomics and durability, ensuring smooth operation throughout the workday.
Features
48V power system
The F4 201’s 48V system boosts reliability and efficiency, allowing operators to move more goods with less effort.
Removable Li-ion batteries
Equipped with two 24V/20Ah plug-in batteries, the F4 201 offers flexible charging, fast replacement, and zero maintenance.
Ergonomic tiller design
The newly designed square-tube tiller provides strength, comfort, and smooth operation for daily industrial use.
Optional stabilizing wheels
Stabilizing wheels enhance safety and load stability, reducing risks when handling heavy or uneven loads.
Request a quote
Specifications for the F4-201
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | F4-201 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 950 mm |
| Wheelbase | 1180 mm |
| Service weight | 140 kg |
| Axle loading, laden front/rear | 620/1520 kg |
| Axle loading, unladen front/rear | 100/40 kg |
| Tyres | Polyurethane |
| Tyre size, front | 210x70mm |
| Tyre size, rear | 80x60mm |
| Additional wheels (castor wheels) | 74x30mm |
| Wheels, number front/rear (x=drive wheels) | 1x −/4 |
| Tread width, rear | 410 (535) mm |
| Lift | ["105"] mm |
| Height drawbar in driving position min./max. | 750/1190 mm |
| Height, lowered | 82 mm |
| Overall length | 1550 mm |
| Length to face of forks | 400 mm |
| Overall width | 590 / 695 mm |
| Fork dimensions | 50x150x1150 mm |
| Fork carriage width | 560 (685) mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2160 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2025 mm |
| Turning radius | 1360 mm |
| Travel speed, laden/unladen | 4.5 / 5 km/h |
| Lift speed, laden/unladen | 0.023/0.026 m/s |
| Lowering speed, laden/unladen | 0.055/0.021 m/s |
| Max. gradeability, laden/unladen | 8 / 16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.9 kW |
| Lift motor rating at S3 15% | 0.7 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 20 Ah |
| Battery type | Li-Ion |
| Battery weight | 10 kg |
| Type of drive unit | BLDC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 5 A |
FAQs
What is the maximum load capacity of the F4 201?
The F4 201 offers a load capacity of 2.0 tons, supported by a powerful 48V system for increased productivity and reliability.
How does the F4 201 ensure battery safety?
The truck features a flip cover that protects the batteries from water ingress, ensuring safe operation and long-lasting performance.
How many batteries does the F4 201 use?
The F4 201 comes standard with two 24V/20Ah Li-ion batteries, and it can be optionally equipped with up to four batteries for extended runtime.
Is the F4 201 suitable for intensive operations?
Yes. Thanks to its 48V power system, removable Li-ion batteries, and fast charging capability, the F4 201 is ideal for demanding logistics and full-shift applications.
What ergonomic improvements does the F4 201 include?
The F4 201 is equipped with a newly designed square-tube tiller head, combining robust construction with improved comfort and ease of operation.
