EP XPMM automatic mono-mast stacker
The XP15 with a mast that lifts a metre, so a robot can load and unload roller beds, conveyors and wrapping stations at the end of your line.
Priced for your siteafter a survey. Buy, or hire on a 12-month contract with servicing included.
Or call 01 5267 411 (ROI) or 028 3833 7038 (NI).
The robot for the last metre of the line
A pallet truck can only put a pallet on the floor. The XPMM adds a mono-mast with up to 1,000 mm of lift, which is enough to set pallets on roller beds and conveyors and to pick them up from automatic wrapping stations.

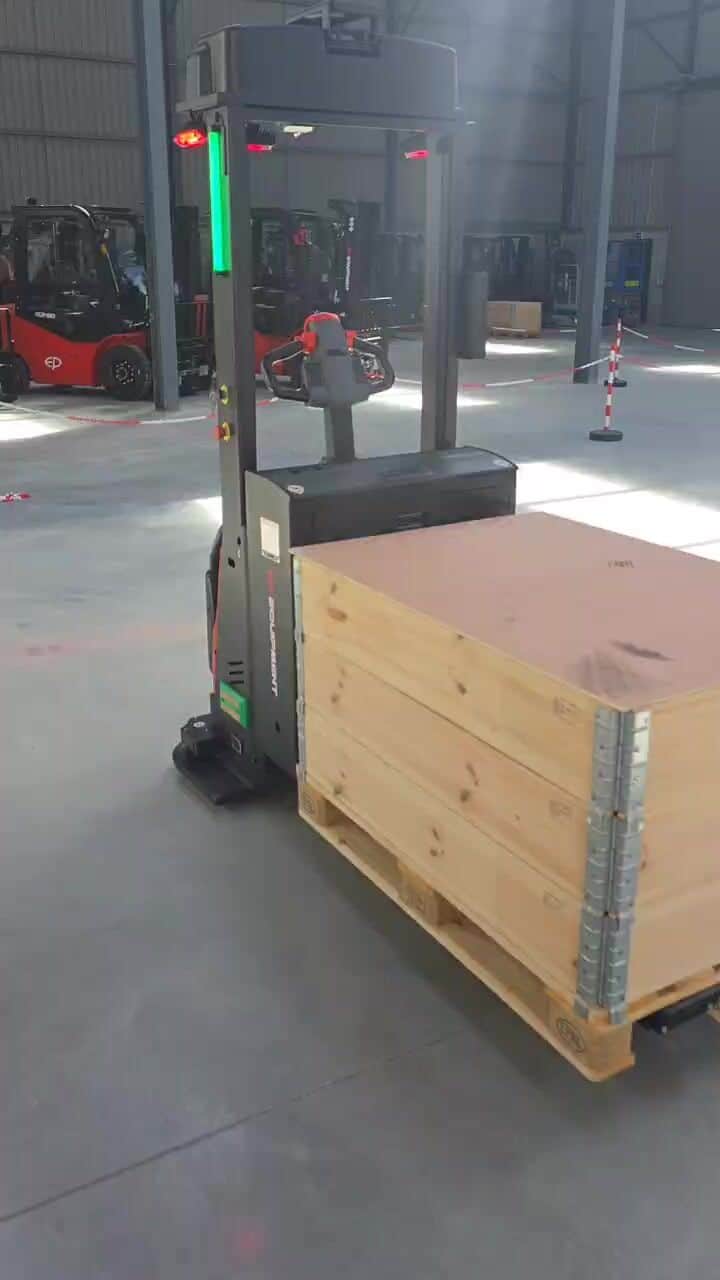

It uses the same ceiling-point navigation as the XP15, needs no Wi-Fi or reflectors, and drives by hand at the press of a button. In our Navan demo warehouse it runs a loop picking up crated pallets and setting them on a roller table, which you can watch below.
EP XPMM specifications
| Type | Automatic mono-mast stacker, automatic or by hand |
|---|---|
| Capacity | 1,200 kg at 600 mm |
| Lift height | 1,000 mm |
| Navigation | 2D visual, using points on the ceiling |
| Accuracy | ±20 mm |
| Speed | 1.0 m/s laden, 1.5 m/s unladen |
| Battery | 24V 60Ah lithium-ion, removable |
| Safety | Bumper, lidar, emergency stop, horn |
| Where | Indoors |
| Needs | No Wi-Fi, reflectors or fixed infrastructure |
From EP XPMM spec sheet and EP XPMM product page. EP may change specifications, so ask us for the current datasheet.
Jobs the XPMM does
- End of lineFinished pallets from the palletiser, wrapper or roller bed to the warehouse.
- Production line feedingMaterials from stores to each line, and work in progress between cells.
Not sure it fits your route? Send us a short video of it and we'll tell you.
What makes the XPMM work
Loads roller beds
Sets pallets on, and picks them up from, roller beds and conveyors at the right height.
Feeds the wrapper
Takes pallets from the palletiser to the wrapper, and from the wrapper on to dispatch.
Working height
The mast can also lift a load to a comfortable height for someone working on it.
Same simple set-up
Routes are made and changed in EP's mobile app, and it runs stand-alone.
Battery swap in seconds
Removable lithium-ion batteries swap in seconds, so it can keep going round the clock.
Manual when needed
One button switches it to a normal pedestrian stacker.
The XPMM in our demo warehouse
Filmed in the Clearlift automation centre at our Navan depot, not a factory video. Come and see it run, and bring one of your own pallets if you want to see it on your load.
From first call to robot running in about four weeks
This is EP's standard rollout for one robot on one job. Bigger projects take longer, and we agree the plan with you.
- Day 1Call
A short call about your routes. If it helps, see the robots working in our Navan demo warehouse.
- Week 1Site survey
We walk your site, or you send a video of the route, and we pick the routes worth automating.
- Weeks 1 to 2Plan
We agree the job and how we will measure it. EP confirms the install date within 48 hours of your go-ahead.
- Weeks 2 to 3Delivery
EP ships from stock, and the robot reaches you in about a week.
- Weeks 3 to 4Install
Installed, programmed, tested and your team trained in one day. Then we service it.
Source: EP Equipment automation.
Other EP automation models
Automatic trucks you teach a route, and autonomous models that find their own way.
EP automation range
EP XPMM questions
Anything else, call us on 01 5267 411 (ROI) or 028 3833 7038 (NI).
How high does the XPMM lift?
Up to 1,000 mm, which suits roller beds, conveyors, wrapper turntables and platforms. To stack into racking, look at the autonomous XQE122 or XNA121.
Will the XPMM work with my wrapper or conveyor?
Usually, yes. We check heights, pallet types and where the hand-over happens during the site survey.
How much does the XPMM cost?
We price it for your site after the survey. You can buy it, or hire it on a 12-month contract with servicing included.
Can I see the XPMM working?
Yes. It runs a roller-bed loop in our Navan demo warehouse. Book a demo to see it.
