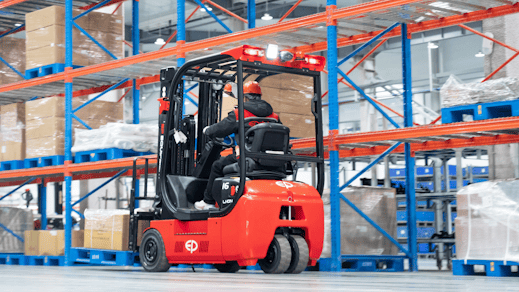

TDL162

Features

Outstanding performance for productivity boost

Thanks to the optimised structure and design, the TDL162 features significant increases in travel speed, lifting speed, lowering speed, residual load capacity and max gradeability, compared to its class. The forklift maintains the nominal capacity of 1600kg up to 4.35 metres elevation with triple-stage mast, demonstrating exceptional stability and performance. With these outstanding strengths, the TDL162 speeds up warehouse turnover and maximises transport efficiency.

80V Li-ion dual-drive power system for high energy efficiency

The dual-drive power system of the TDL162 has been upgraded from 48V to 80V and the truck comes with an 80V/280Ah Li-ion battery as standard, ensuring lower energy consumption, a powerful drive and long endurance.

2 charging possibilities on the same truck

TDL162 comes standard with a single-phase integrated charger with plug and a plug for an external charger. Thanks to this new feature, TDL162 charging becomes extremely flexible and can meet all kinds of application needs up to multi-shift operation using an external fast charger.

Ergonomic design to improve driving comfort and convenience

The TDL162 is designed around ergonomic requirements: a large workspace, improved steering sensitivity, wider visibility, a lower noise level and an informative LED display with performance selector switch, all of which provide the driver with a comfortable and safe operation experience.

Premium options to fulfil high-end needs

The TDL162 can be fitted with the joystick option positioned at the end of the armrest to replace manual levers and it allows all controls to be performed in a palm-sized area without fatigue: all hydraulic functions, direction changes, horn, and emergency stop, all within a compact, ergonomic design. For operations in challenging weather, the all-weather cabin option extends the forklift’s operation across various conditions, ensuring consistent productivity regardless of the environment.

Specifications for the TDL162

FAQs

• What is the load capacity of the TDL162?

  The TDL162 is a 3-wheel dual-drive electric forklift with a load capacity of 1,600 kg at a 500 mm load centre. Thanks to its upgraded 80V system and optimised frame, the truck maintains full capacity up to 4.5 metres lift height, ensuring stable and efficient performance across intensive warehouse operations.

• What is the maximum lift height and mast configuration?

  The TDL162 provides a standard lift height of 3,000 mm, with optional 2-stage and 3-stage masts extending up to 6,000 mm. The truck retains high residual capacity throughout the lift range, and optional free-lift masts allow for precise operation in low-ceiling environments.

• What battery system powers the TDL162?

  This model runs on a high-efficiency 80V/280Ah lithium-ion battery, offering long endurance and lower energy consumption. It features two charging options on the same truck—a 35A integrated single-phase charger and an external fast-charging port compatible with 60A–150A chargers, making it ideal for both single-shift and multi-shift operations.

• How manoeuvrable is the TDL162 in confined spaces?

  With a compact turning radius of just 1,639 mm, the TDL162 delivers outstanding agility in tight warehouse aisles. The hydraulic steering system ensures precise control and smooth movement, while the powerful dual 5.4 kW AC drive motors provide strong acceleration and gradeability up to 25% when unladen.

• What comfort and safety features does the TDL162 offer?

  The TDL162 is designed for operator comfort and safety with a spacious 470 mm legroom, wider visibility, and low noise operation. It includes an informative LED display, performance mode selector, and optional joystick hydraulic controls for effortless handling. Safety is enhanced through OPS (Operator Presence System), LED lighting, electromagnetic brakes, and optional cabin and warning systems.
