EP 48V heavy-use 3-wheel forklift
EP TDL201 3-wheel dual-drive electric forklift

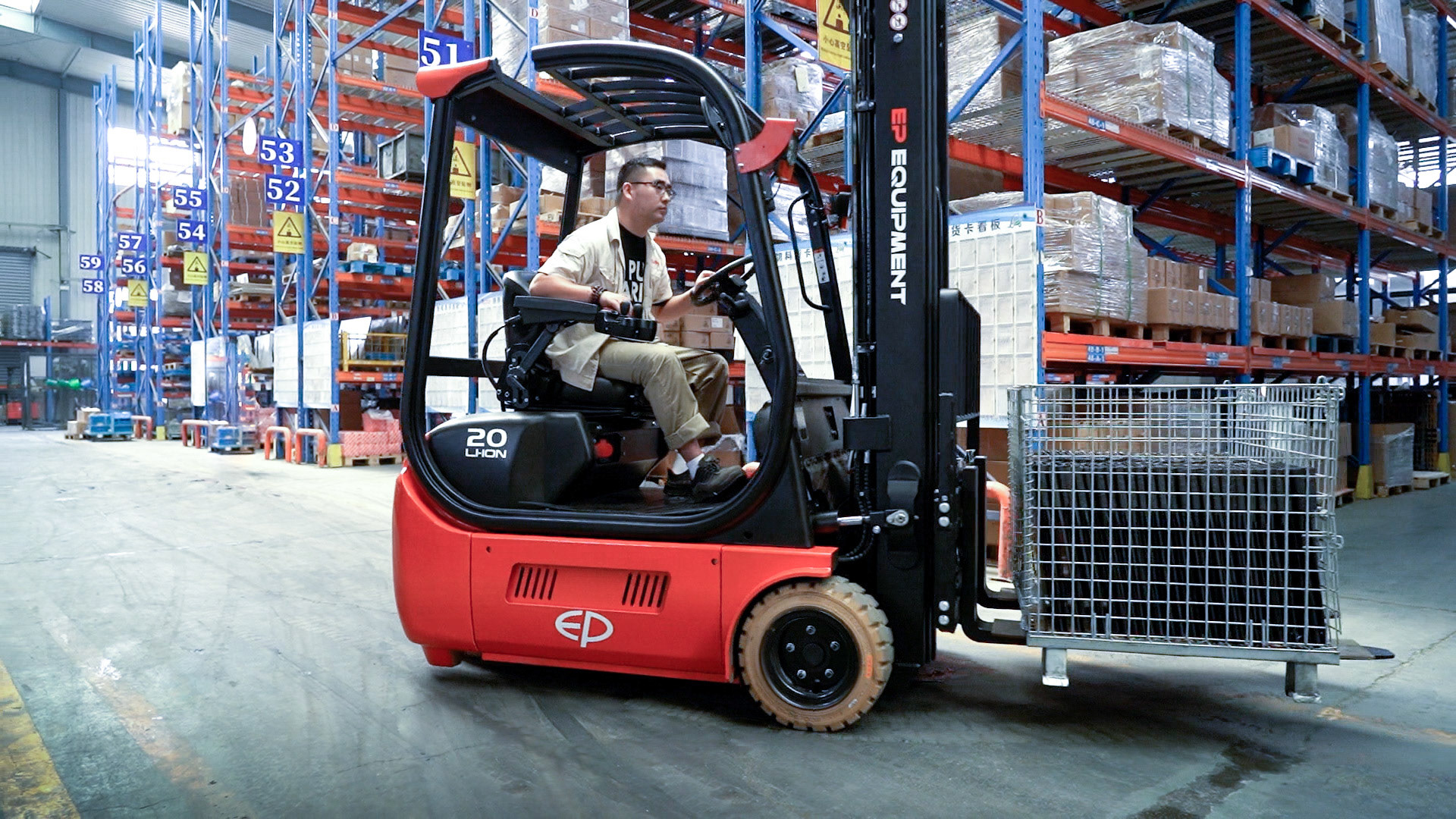

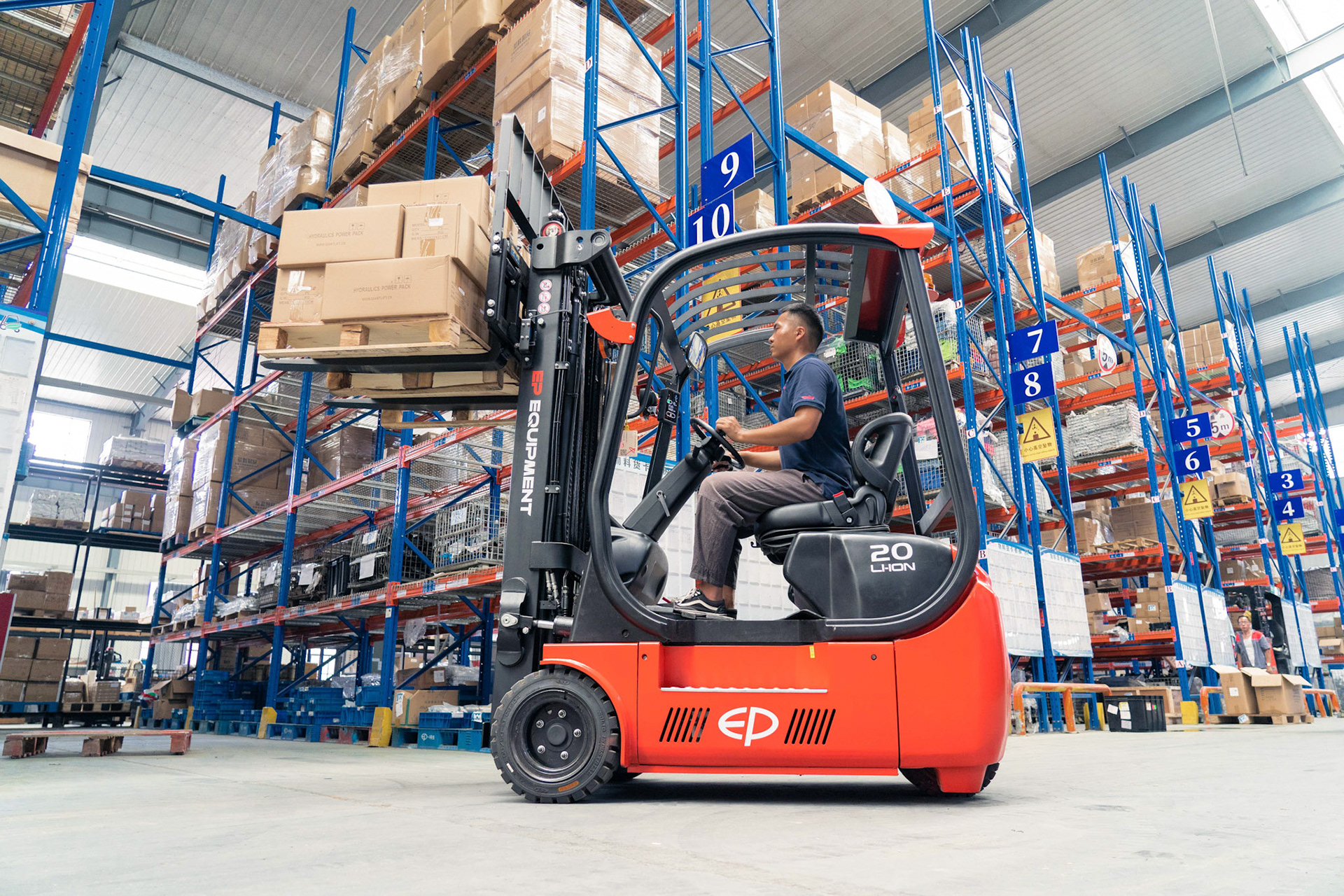

3-Wheel Dual-Drive Counterbalance Forklift, 2,000 kg
A 2 tonne 3-wheeler with a 48V 405Ah lithium-ion battery and twin 5.4 kW drive motors. Built for intensive warehouse and dock work, indoors and out.
- 2,000 kgLift capacity
- 6.0 mMax lift height
- 48V Li-ion405Ah
- 16 km/hTravel speed
- Ireland's exclusive EP Equipment dealer
- Buy, finance or contract hire from 12 months
- Delivered and serviced by our own engineers
- 405Ah lithiumLargest TDL battery
- Twin 5.4 kW drive15 km/h laden
- Cab-ready frameFit or remove a cabin
- Local supportEngineers in Navan and Portadown
Is it right for you?
Who the TDL201 suits, and when to pick another model
Built for
- Large warehouses and logistics centres
- Docks and side-bay lorry loading
- Pallets up to 2 t and racking up to 6 m
- Indoor and outdoor work on firm surfaces
- Intensive use with top-up charging
Look at another EP model if
- Your loads stay under 1.6 tTDL161 1.6 t, 48V 280Ah
- Your aisles are tighterTVL201 2 t, 80V 205Ah, turns in 1,585 mm
- Ceilings are low or you load containersTVL202 2 t, guard under 2 m
- You work on rough yardsEFL203 2 t, indoor & outdoor
Not sure? Tell us what you lift and we'll recommend the right truck.
Features
What makes the TDL201 work

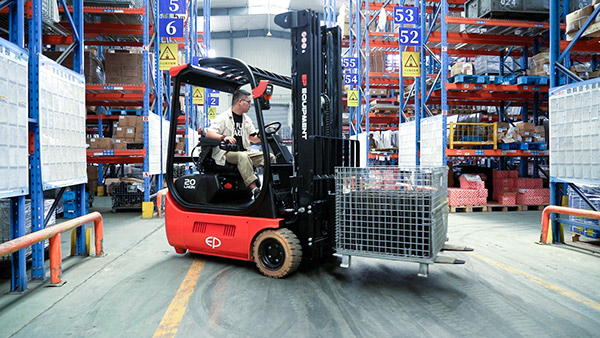

The TDL201 is the 2 t member of EP's TDL family. It shares the TDL161's drive and frame, with more capacity and a bigger battery.
405Ah lithium battery
The 48V 405Ah battery is the largest in the TDL family, against 280Ah on the TDL161. A 48V/50A charger is built in, with 150A or 200A external chargers optional, and it takes top-ups in breaks.
Twin drive power
Two 5.4 kW AC motors give 15 km/h laden and 16 km/h unladen, quicker than the TVL201's 13 km/h laden. Gradeability is 15% laden.
Sized for 2 tonnes
It lifts 2,000 kg at a 500 mm load centre on 1,070 mm forks, with 200/50-10 front tyres. It is 1,150 mm wide and turns in 1,605 mm.
Hydraulic steering
Hydraulic steering gives precise, responsive control and reduces operator fatigue. The simple system is reliable and cheaper to maintain.
Cab-ready, joystick optional
The one-piece frame makes it easy to fit or remove a cabin. An optional electromagnetic joystick puts every control in one palm-sized unit.
Informative display
On the TDL201, EP measured 120 t/h moved at 20.69 t per kWh under VDI 2198, and the high-resolution screen helps drivers keep that pace. Speed, hours worked, battery level, distance and parking status are all shown at a glance.
Specifications
TDL201 technical specifications
Figures from EP's datasheet for the standard truck. Mast, battery and options change some values.
Capacity and lifting
| Rated capacity | 2,000 kg |
|---|---|
| Max lift height | 6,000 mm |
| Tilt of mast/fork carriage forward/backward | 5° / 5° |
| Height, mast lowered | 2,075 mm |
| Free lift | 100 mm |
| Lift | 3,000 mm |
| Height, mast extended | 4,058 mm |
| Coupling height | 560 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Operating pressure for attachments | 180 bar |
| Oil volume for attachments | 25ℓ/min |
Dimensions and weight
| Load centre distance | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork | 420 mm |
| Wheelbase | 1,358 mm |
| Service weight | 3,575 kg |
| Axle loading, laden front/rear | 4892 / 683 kg |
| Axle loading, unladen front/rear | 1535 / 2,040 kg |
| Tread width, front | 936 mm |
| Tread width, rear | 210 mm |
| Height of overhead guard (cabin) | 2,140 mm |
| Seat height relating to SIP/stand height | 1,070 mm |
| Overall length | 3,083 mm |
| Length to face of forks | 2,013 mm |
| Overall width | 1,150 mm |
| Fork dimensions | 40 × 122 × 1,070 mm |
| Fork carriage width | 1,040 mm |
| Ground clearance, laden, below mast | 86 mm |
| Ground clearance, centre of wheelbase | 104 mm |
| Aisle width for pallets 1000×1200 crossways | 3,348 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3,485 mm |
| Turning radius | 1,605 mm |
| Sound pressure level at the driver's seat | 79 dB(A) |
Performance
| Travel speed, laden/unladen | 15 / 16 km/h |
|---|---|
| Lift speed, laden/unladen | 0.35 / 0.43 m/s |
| Lowering speed, laden/unladen | 0.45 / 0.37 m/s |
| Max. gradeability, laden/unladen | 15 / 17 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Turnover efficiency according to VDI 2198 | 20.69 |
| Steering design | Hydraulic |
Battery and electrics
| Drive motor rating S2 60 min | 5.4 × 2 kW |
|---|---|
| Lift motor rating at S3 15% | 11 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 405 Ah |
| Battery type | Li-Ion |
| Battery weight | 203 kg |
| Energy consumption according to DIN EN 16796 | 6.33 ¹⁾kWh/h |
| Charger output current | 50 A |
Tyres and wheels
| Tyres | Solid rubber |
|---|---|
| Tyre size, front | 200 / 50-10 mm |
| Tyre size, rear | 140 / 55-9 mm |
| Wheels, number front/rear (x=drive wheels) | 2X/2 |
Other
| Manufacturer | EP |
|---|---|
| Model designation | TDL201 |
| Drive | Electric |
| Operator type | Seated |
| Turnover output according to VDI 2198 | 120 |
| Type of drive unit | AC |
Compare
TDL201 against similar EP models
The closest EP 3-wheel forklifts by capacity and lift height.
| TDL201 | TVL201 | TVL202 | TVL181 | |
|---|---|---|---|---|
| Capacity | 2,000 kg | 2,000 kg | 2,000 kg | 1,800 kg |
| Max lift height | 6.0 m | 6.0 m | 6.0 m | 6.0 m |
| Battery | 48V / 405Ah | 80V / 205Ah | 80V / 150Ah | 80V / 205Ah |
| Turning radius | 1,605 mm | 1,585 mm | 1,641 mm | 1,550 mm |
| Overall width | 1,150 mm | 1,170 mm | 1,176 mm | 1,100 mm |
| Travel speed | 15 / 16 km/h | 13 / 14 km/h | 13 / 14 km/h | 13 / 14 km/h |
| Weight | 3,575 kg | 3,429 kg | 3,483 kg | 3,269 kg |
Buy or hire
Three ways to get the TDL201
Buy new
Own it outright, with EP parts direct from the factory and servicing by our engineers.
See this month's offers →Contract hire
A new TDL201 for a fixed monthly payment, from 12 months, with servicing and repairs included.
See forklift hire →Finance
Spread the cost of buying over time, at the strong rates our volume with EP has earned us.
See finance options →
FAQ
Questions about the TDL201
How does the TDL201 differ from the TDL161?
It lifts 2,000 kg instead of 1,600 kg, with a 405Ah battery against 280Ah. It's heavier (3,575 kg against 3,380 kg) and 100 mm wider, with the same 1,605 mm turning radius and travel speeds.
Should I choose the TDL201 or the TVL201?
Both are 2 t 3-wheelers lifting to 6.0 m. The TDL201 uses 48V with a 405Ah battery, travels faster at 15 km/h laden and climbs 15% laden against 10%. The TVL201 runs on 80V 205Ah and turns tighter, at 1,585 mm against 1,605 mm.
Can the TDL201 work outside?
EP designed the TDL range for indoor and outdoor work, and a cabin can be fitted. It runs on solid tyres, so firm, even surfaces suit it best.
What charging options are there?
With 405Ah at 48V, the TDL201 has the biggest battery in the TDL range, so charging choice matters. Its own 48V/50A charger is fitted as standard. On busier shifts, add an external 48V/150A or 48V/200A unit and top up in breaks.
How noisy is it?
Noise at the seat is 79 dB(A). If a quieter cab matters most, the TVL202 measures 65 dB(A).
What aisle width does it need?
The TDL201 lifts 2 t yet asks for no more room than the 1.6 t TDL161: EP's figure is 3,348 mm with 1000 x 1200 pallets crossways. Allow 3,485 mm for 800 x 1200 pallets lengthways. Note it is 1,150 mm wide on bigger 200/50-10 front tyres.
Can I hire the TDL201?
Yes, on contract hire from 12 months, with servicing and repairs included in one fixed monthly payment. We don't offer short-term hire. See forklift hire.
How much does the TDL201 cost?
It depends on the mast, battery and options you need. Ask for a price and we'll quote it to buy outright, on finance or on contract hire.
Who services the TDL201?
Our own engineers, from our depots in Navan and Portadown, using EP parts. We look after customers across Ireland and Northern Ireland.
