EP indoor / outdoor electric forklift

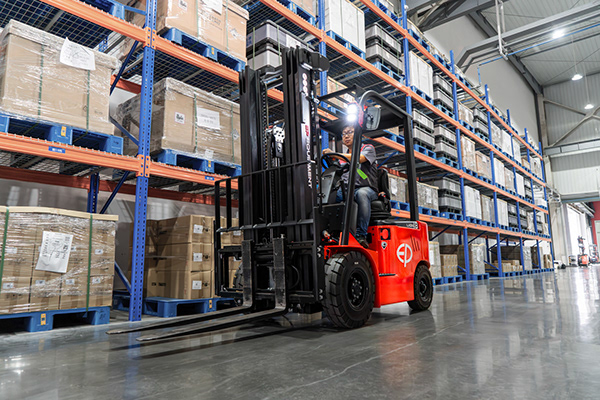

EP EFL183 electric forklift
Electric Counterbalance Forklift 1.8T
A 1.8 tonne, 80V lithium-ion forklift on air-filled tyres that's as happy in the yard as in the warehouse. The modern electric replacement for a small diesel truck.
- 1,800 kgLift capacity
- 6.0 mMax lift height
- 80V Li-ion100, 150 or 230Ah
- 1,895 mmTurning radius
- Ireland's exclusive EP Equipment dealer
- Buy, finance or contract hire from 12 months
- Delivered and serviced by our own engineers
- Indoors and outPneumatic tyres, IPX4 rated
- 80V PMSM driveUp to 17% less energy (EP figure)
- Lithium-ionTop up in breaks, no battery changes
- Local supportEngineers in Navan and Portadown
Is it right for you?
Who the EFL183 suits, and when to pick another model
Built for
- Yards, loading bays and ramps, on air-filled (pneumatic) tyres
- Mixed work that moves between the warehouse and outside
- Loads up to 1.8 t and racking up to 6 m
- Replacing a 1.5 to 1.8 t diesel or LPG truck, with no exhaust indoors
- Long shifts, with top-up charging in breaks
Look at another EP model if
- Your aisles are very tightTVL181 3-wheel, turns in 1,550 mm
- You only work indoors on smooth floorsCPD18FVL compact 4-wheel, turns in 1,680 mm
- Your loads go over 1.8 tEFL203 same outdoor ability, 2 t
- You lift 2.5 t regularlyEFL253 2.5 t, 80V lithium
Not sure? Tell us what you lift and we'll recommend the right truck.
Features
What makes the EFL183 work
The EFL183 replaces EP's EFL181 with a higher-voltage system, a taller mast and much quicker travel. Here's what that means on site.
80V PMSM drive
The drive and pump motors are permanent-magnet (PMSM) units on an 80V system. EP rates them at up to 17% less energy than traditional AC motors, with quicker acceleration and lifting than the EFL181 it replaces, and no motor maintenance.
Lithium-ion, three battery sizes
Choose 100Ah, 150Ah or 230Ah to match your hours. Lithium needs no watering or battery changes, and you can top up in tea breaks without harming the battery. It charges from the built-in charger or an external one.
Built for outside
Pneumatic tyres, 119 mm of ground clearance and 16% gradeability with a load let it handle yards, ramps and rougher ground that would stop a solid-tyred warehouse truck.
Stable when stacking
A reinforced CJ-beam mast and stronger chassis keep more capacity at height than the previous model, and the redesigned mast and overhead guard give a clear view of the forks.
Comfortable for long shifts
A cast, shock-absorbing steer axle cuts vibration, and the low-noise pump keeps it under 70 dB(A) at the seat. Options include speed reduction in turns and when lifting.
Low running costs
Electricity instead of diesel, no engine oil or filters, and fewer wearing parts. Our engineers service it from Navan and Portadown.
Battery options
Pick the battery to match your shifts
Same truck, different battery sizes, so you only pay for the capacity you'll use.
80V 100AhLighter use
Short or occasional shifts, with a charge overnight.
80V 150AhStandard
Most single shifts, especially with top-up charging in breaks.
80V 230AhHeavy use
Long or double shifts, or busy yards where the truck rarely stops.
Not sure which size? Tell us your shift pattern and we'll recommend one.
Specifications
EFL183 technical specifications
Figures from EP's datasheet for the standard truck. Mast, battery and options change some values.
Capacity and lifting
| Rated capacity | 1,800 kg |
|---|---|
| Max lift height | 6,000 mm |
| Tilt of mast/fork carriage forward/backward | 6° / 10° |
| Height, mast lowered | 2,020 mm |
| Free lift | 100 mm |
| Lift | 3,000 mm |
| Height, mast extended | 4,055 mm |
| Coupling height | 360 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Operating pressure for attachments | 180 bar |
| Oil volume for attachments | 35ℓ/min |
Dimensions and weight
| Load centre distance | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork | 438 mm |
| Wheelbase | 1,340 mm |
| Service weight | 3,060 kg |
| Axle loading, laden front/rear | 4285 / 575 kg |
| Axle loading, unladen front/rear | 1220 / 1,840 kg |
| Tread width, front | 955 mm |
| Tread width, rear | 915 mm |
| Height of overhead guard (cabin) | 2,082 mm |
| Seat height relating to SIP/stand height | 1,110 mm |
| Overall length | 3,045 mm |
| Length to face of forks | 2,125 mm |
| Overall width | 1,146 mm |
| Fork dimensions | 40 × 100 × 920 mm |
| Fork carriage width | 1,040 mm |
| Ground clearance, laden, below mast | 135 mm |
| Ground clearance, centre of wheelbase | 119 mm |
| Aisle width for pallets 1000×1200 crossways | 3,533 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3,733 mm |
| Turning radius | 1,895 mm |
Performance
| Travel speed, laden/unladen | 16 / 17 km/h |
|---|---|
| Lift speed, laden/unladen | 0.42 / 0.48 m/s |
| Lowering speed, laden/unladen | 0.45 / 0.43 m/s |
| Max. gradeability, laden/unladen | 16 / 20 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Turnover efficiency according to VDI 2198 | 22.68 |
| Steering design | Hydraulic |
Battery and electrics
| Drive motor rating S2 60 min | 8.1 kW |
|---|---|
| Lift motor rating at S3 15% | 16 kW |
| Battery voltage | 80 V |
| Battery nominal capacity K5 | 80V / 150Ah |
| Battery type | Li-Ion |
| Battery weight | 107 kg |
| Energy consumption according to DIN EN 16796 | 5.63 kWh/h |
Tyres and wheels
| Tyres | Pneumatic |
|---|---|
| Tyre size, front | 6.5-10-10PRmm |
| Tyre size, rear | 5.00-8-10PRmm |
| Wheels, number front/rear | 2x/ 2 x=drive wheels |
Other
| Manufacturer | EP |
|---|---|
| Model designation | EFL183 |
| Drive | Electric |
| Operator type | Seated |
| Turnover output according to VDI 2198 | 111.6 |
| Type of drive unit | PMSM |
Compare
EFL183 against similar EP models
The closest EP indoor / outdoor forklifts by capacity and lift height.
| EFL183 | EFL203 | EFL203P | EFL252X5 | |
|---|---|---|---|---|
| Capacity | 1,800 kg | 2,000 kg | 2,000 kg | 2,500 kg |
| Max lift height | 6.0 m | 6.0 m | 6.0 m | 6.0 m |
| Battery | 80V / 150Ah | 80V / 230Ah | 80V / 230Ah | 280Ah |
| Turning radius | 1,895 mm | 2,110 mm | 2,110 mm | 2,270 mm |
| Overall width | 1,146 mm | 1,154 mm | 1,154 mm | 1,154 mm |
| Travel speed | 16 / 17 km/h | 14 / 15 km/h | 19 / 20 km/h | 16 / 17 km/h |
| Weight | 3,060 kg | 3,540 kg | 3,540 kg | 3,835 kg |
Buy or hire
Three ways to get the EFL183
Buy new
Own it outright, with EP parts direct from the factory and servicing by our engineers.
See this month's offers →Contract hire
A new EFL183 for a fixed monthly payment, from 12 months, with servicing and repairs included.
See forklift hire →Finance
Spread the cost of buying over time, at the strong rates our volume with EP has earned us.
See finance options →
FAQ
Questions about the EFL183
Can the EFL183 work outside?
Yes. Its pneumatic tyres and 119 mm of ground clearance suit yards, ramps and rougher surfaces, and EP rates the electrical system IPX4 against splashing water. If you only ever work indoors on smooth floors, the solid-tyred CPD18FVL turns tighter.
Which battery size do I need?
It comes with an 80V lithium-ion battery in 100Ah, 150Ah (standard) or 230Ah. The right size depends on how many hours the truck works each shift and whether it can top up during breaks. Tell us your shift pattern and we'll recommend one.
How is the EFL183 different from the EFL181?
The EFL183 runs on 80V instead of 48V, lifts to 6.0 m instead of 4.8 m, and travels at 16 km/h laden against 8.5 km/h. Its PMSM motors also use less energy, by up to 17% against traditional AC motors according to EP.
Can I hire an EFL183?
Yes, on contract hire from 12 months, with servicing, repairs and GA1/LOLER inspections included in one monthly payment. We don't offer short-term hire. See forklift hire.
Can it replace my diesel or LPG forklift?
For loads up to 1.8 t and lift heights up to 6 m, usually yes, and with no exhaust it can work indoors as well as out. Send us your loads, lift heights and ground conditions and we'll confirm, or suggest the EFL203 if you need more capacity.
Who services the EFL183?
Our own engineers, from our depots in Navan and Portadown, with EP parts. We look after customers across Ireland and Northern Ireland.
How much does the EFL183 cost?
It depends on the mast, battery and options you need. Ask for a price and we'll quote it to buy outright, on finance or on contract hire.
