1500 Kg
F4
Electric Pallet Truck 1.5T
Contact Us

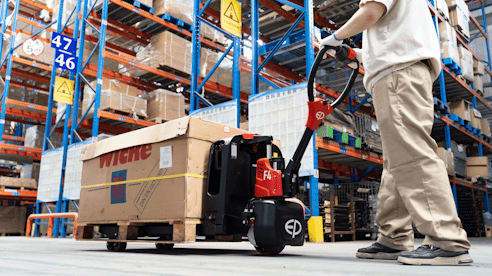

About the F4
The F4 is designed as an all-rounder pallet truck that combines strength, flexibility, and compactness. With a 1.5-ton load capacity, removable Li-ion batteries, and a lightweight 120 kg build, the F4 adapts easily to both occasional and intensive applications. Its optional stabilizing wheels and customizable fork dimensions make it a truly versatile choice for different industries.
Get a QuoteDatasheet
Product Application
The F4 is ideal for a wide range of environments, from light retail usage to intensive logistics operations. Its compact size (400 mm fork face length) and reduced service weight make it highly maneuverable in tight spaces, while its dual-battery slot design ensures continuous operation for long shifts. The optional stabilizing wheels enhance safety when handling large or heavy loads, making the F4 a dependable solution for warehouses, retail stores, and transport hubs.
Features
Flexible battery system
The F4 supports up to two removable 24V/20Ah Li-ion batteries, providing extended runtime for intensive applications or opportunity charging flexibility.
Compact & lightweight
With a short 400 mm fork face length and a low service weight of only 120 kg, the F4 is highly maneuverable in narrow aisles and confined spaces.
Optional stabilizing wheels
To safely handle heavier or uneven loads, the F4 can be equipped with stabilizing wheels, available from the factory or as retrofit.
Customisable forks
Available in various lengths and widths, the F4 adapts to different pallet standards and customer-specific applications.
Request a quote
Specifications for the F4
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | F4 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 950 mm |
| Wheelbase | 1180 mm |
| Service weight | 120 kg |
| Axle loading, laden front/rear | 480/1140 kg |
| Axle loading, unladen front/rear | 90/30 kg |
| Tyres | Polyurethane |
| Tyre size, front | 210x70 mmmm |
| Tyre size, rear | 80x60 mmmm |
| Additional wheels (castor wheels) | Φ 74x30mm |
| Wheels, number front/rear (x=drive wheels) | 1x —/4 |
| Tread width, rear | 410 (535) mm |
| Lift | ["105"] mm |
| Height drawbar in driving position min./max. | 645/1145 mm |
| Height, lowered | 82 mm |
| Overall length | 1550 mm |
| Length to face of forks | 400 mm |
| Overall width | 590 (695) mm |
| Fork dimensions | 55/150/1150 mm |
| Fork carriage width | 560 (685) mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2160 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2025 mm |
| Turning radius | 1360 mm |
| Travel speed, laden/unladen | 4/4.5 km/h |
| Lift speed, laden/unladen | 0.017/0.020 m/s |
| Lowering speed, laden/unladen | 0.057/0.036 m/s |
| Max. gradeability, laden/unladen | 6/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 0.5 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 20 Ah |
| Battery type | Li-Ion |
| Battery weight | 5 kg |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 5 A |
FAQs
What makes the F4 different from other pallet trucks?
The F4 is designed as an all-rounder, with multiple fork sizes, optional stabilizing wheels, and up to four removable Li-ion batteries, making it adaptable to both light and intensive applications.
How many batteries does the F4 support?
The F4 can be equipped with up to two 24V/20Ah Li-ion batteries in standard use, and up to four batteries as an option, ensuring maximum uptime for full-shift operations.
Is the F4 suitable for narrow aisles?
Yes. With a compact fork face length of just 400 mm and a reduced service weight of 120 kg, the F4 is highly maneuverable in tight and confined spaces.
What safety features does the F4 offer?
The F4 can be fitted with stabilizing wheels to reduce the risk of tipping on uneven surfaces and heavy loads, improving operator safety and load stability.
In what environments is the F4 most effective?
The F4 is versatile and can be used in retail, warehouses, and logistics centers. It is suitable for occasional handling as well as intensive, full-shift applications thanks to its modular battery system.
