2000 kg
TDL201

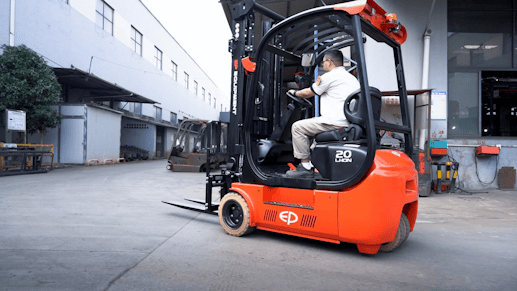

3-Wheel Dual-Drive Counterbalance Forklift, 2,000 kg
Contact Us
About the TDL201
With a modern, streamlined design and ergonomic features, the TDL series is engineered to enhance productivity and operator comfort.
Get a QuoteDatasheet
Product Application
This 3‑wheel forklift is ideal for a wide range of settings, including large warehouses, docks, side‑bay lorries and logistics centres, delivering strong performance both indoors and outdoors.
It boosts productivity with its Li‑ion core and dual drive units, meeting the demands of intensive applications.
Features
Hydraulic steering system with better human‑vehicle interaction
The TDL series uses a hydraulic steering system to achieve more precise and responsive control, providing improved human‑vehicle interaction. In addition, the hydraulic system has a simple, reliable construction and lower maintenance costs.
Electromagnetic joystick available for premium requirements
For premium material handling, an electromagnetic joystick is available as an option, putting operator experience and productivity at the forefront. The joystick houses all truck controls, allowing the operator to perform all functions from a palm‑sized control with the utmost precision.
Larger legroom to amplify driving comfort
The integrated operator compartment is designed to create a larger working space to improve ergonomics, reduce work‑related health issues for the operator, and enhance operational efficiency.
Powerful and constant working performance
The lithium‑ion battery with opportunity charging and dual 5.4 kW drive motors guarantees the TDL series operates at full power at all times with consistently high performance. It comes with a 48V/50A integrated charger as standard for convenient charging; 48V/150A and 48V/200A external chargers are available as options to better suit your needs.
Optimised truck frame for cabin installation and detachment
The TDL series features the same streamlined design as the L2 series and an optimised one‑piece truck frame, which facilitates easy cabin installation and removal.
New informative LED display
The TDL series is fitted with a high‑resolution LED display mounted in the upper right corner of the cabin. At a glance the operator can see speed, working hours, battery status, distance travelled and parking status. This informative, intuitive display promotes relaxed and safe operation.
Request a quote
Specifications for the TDL201
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | TDL201 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 2000 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 420 mm |
| Wheelbase | 1358 mm |
| Service weight | 3575 kg |
| Axle loading, laden front/rear | 4892/683 kg |
| Axle loading, unladen front/rear | 1535/2040 kg |
| Tyres | Solid rubber |
| Tyre size, front | 200/50-10mm |
| Tyre size, rear | 140/55-9mm |
| Wheels, number front/rear (x=drive wheels) | 2X/2 |
| Tread width, front | 936 mm |
| Tread width, rear | 210 mm |
| Max lift height | 6000 mm |
| Tilt of mast/fork carriage forward/backward | 5/5 ° |
| Height, mast lowered | 2075 mm |
| Free lift | 100 mm |
| Lift | ["3000"] mm |
| Height, mast extended | 4058 mm |
| Height of overhead guard (cabin) | 2140 mm |
| Seat height relating to SIP/stand height | 1070 mm |
| Coupling height | 560 mm |
| Overall length | 3083 mm |
| Length to face of forks | 2013 mm |
| Overall width | 1150 mm |
| Fork dimensions | 40X122X1070 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 1040 mm |
| Ground clearance, laden, below mast | 86 mm |
| Ground clearance, centre of wheelbase | 104 mm |
| Aisle width for pallets 1000×1200 crossways | 3348 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3485 mm |
| Turning radius | 1605 mm |
| Travel speed, laden/unladen | 15/16 km/h |
| Lift speed, laden/unladen | 0.35/0.43 m/s |
| Lowering speed, laden/unladen | 0.45/0.37 m/s |
| Max. gradeability, laden/unladen | 15/17 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 5.4X2 kW |
| Lift motor rating at S3 15% | 11 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 405 Ah |
| Battery type | Li-Ion |
| Battery weight | 203 kg |
| Energy consumption according to DIN EN 16796 | 6.33 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 120 |
| Turnover efficiency according to VDI 2198 | 20.69 |
| Type of drive unit | AC |
| Operating pressure for attachments | 180bar |
| Oil volume for attachments | 25ℓ/min |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | 79 dB(A) |
| Charger output current | 50 A |
FAQs
What is the load capacity of the TDL161/201 series?
The TDL series offers two high‑performance models: the TDL161 with a 1.6‑tonne load capacity and the TDL201 with a 2.0‑tonne load capacity, both featuring a 500 mm load centre. These 3‑wheel dual‑drive forklifts are designed to handle a wide range of indoor and outdoor applications with strength, stability and agility.
What is the maximum lift height and mast configuration?
The TDL161/201 comes with a standard lift height of 3,000 mm, while optional masts can reach up to 6,000 mm for high‑rack operations. The tilt mast (5° forward / 6° backwards) allows for precise and safe load handling, and free‑lift and triplex mast options are available for operations requiring flexible lifting in confined spaces.
What type of battery powers the TDL161/201?
This series is built around EP’s 48V lithium‑ion battery system, providing reliable and maintenance‑free power. The TDL161 uses a 48V/280Ah battery, while the TDL201 offers a 48V/405Ah version. Both models include a 48V/50A integrated charger for convenient plug‑in charging, with optional 150A or 200A external chargers for faster turnaround times.
How maneuverable is the TDL series?
The compact 3‑wheel design with a tight 1,605 mm turning radius ensures outstanding manoeuvrability in narrow aisles and compact warehouse environments. Dual 5.4 kW AC drive motors deliver smooth, responsive handling, while hydraulic steering enhances precision and reduces operator fatigue during long shifts.
What comfort and safety features enhance operator performance?
The TDL161/201 prioritises operator comfort with an adjustable steering wheel, spacious cabin and a premium bucket seat. A high‑resolution LCD display keeps the operator informed of speed, battery status and operating data. Safety is reinforced with LED lighting, the OPS system, electromagnetic brakes and optional warning lamps and cabin configurations. Together, these features create a comfortable and secure operating environment for any working conditions.
