2000 kg
KPL201
Heavy-duty Li-ion Ride-on Pallet Truck 2.0T
Contact Us

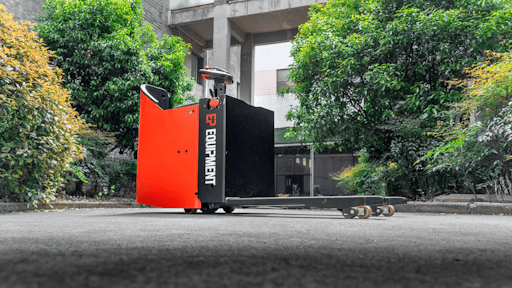

About the KPL201
The KPL201 combines a 2000 kg load capacity with high maneuverability thanks to its power steering and compact design. Powered by a 24V/205Ah Li-ion battery and supported by a 100A external charger, it delivers fast charging, zero maintenance, and reliable performance for multi-shift usage. With a turning radius of 2217 mm and automatic cornering speed reduction, it ensures safe and efficient material handling.
Get a QuoteDatasheet
Product Application
Designed for distribution centers, warehouses, and logistics hubs, the KPL201 is suitable for heavy-duty pallet transport over long distances. Its suspended operator platform, padded backrest, and ergonomic tiller make it comfortable for extended use. The truck’s stability and compact chassis allow it to perform efficiently in narrow aisles and high-intensity operations.
Features
Power steering for effortless control
Equipped with advanced power steering, the KPL201 ensures precise and stable maneuvering. Operators can handle loads with greater efficiency and less effort, even in demanding, high-traffic environments.
Li-ion battery efficiency
The 24V/205Ah Li-ion battery with 100A external charger supports rapid opportunity charging and eliminates the need for maintenance. This allows maximum uptime and continuous operation across multi-shift logistics tasks.
Operator comfort and safety
Featuring a suspended platform, padded backrest, and semi-enclosed compartment, the KPL201 provides fatigue-free working conditions while ensuring protection against impacts and obstacles.
Safe and stable performance
With a lowered center of gravity and automatic speed reduction during turns, the KPL201 enhances travel stability and safety. Its compact chassis and ergonomic design make it highly suitable for both long-distance transport and confined warehouse spaces.
Request a quote
Specifications for the KPL201
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | KPL201 |
| Drive | Electric |
| Operator type | Standing |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 977 mm |
| Wheelbase | 1529 mm |
| Service weight | 765 kg |
| Axle loading, laden front/rear | 985/1780 kg |
| Axle loading, unladen front/rear | 615/150 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф85x70mm |
| Tyre size, rear | Ф230x75mm |
| Additional wheels (castor wheels) | Ф130x55mm |
| Wheels, number front/rear (x=drive wheels) | 1x+2/4 |
| Tread width, front | 514 mm |
| Tread width, rear | 515 mm |
| Max lift height | 120 mm |
| Lift | ["125"] mm |
| Height drawbar in driving position min./max. | 1154/1254 mm |
| Height, lowered | 85 mm |
| Overall length | 2381 mm |
| Length to face of forks | 1234 mm |
| Overall width | 734 mm |
| Fork dimensions | 55x170x1150 mm |
| Distance between fork-arms | 540/685 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 3017 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2874 mm |
| Turning radius | 2217 mm |
| Travel speed, laden/unladen | 8.5/10.0 km/h |
| Lift speed, laden/unladen | 0.051 / 0.060 m/s |
| Lowering speed, laden/unladen | 0.032 / 0.039 m/s |
| Max. gradeability, laden/unladen | 6/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 2.2 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 205 Ah |
| Battery type | Li-Ion |
| Battery weight | 62 kg |
| Energy consumption according to DIN EN 16796 | 0.219 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 132 |
| Turnover efficiency according to VDI 2198 | 141.18 |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
FAQs
What is the maximum load capacity of the KPL201?
The KPL201 can handle up to 2000 kg, making it suitable for heavy-duty transport tasks in warehouses and logistics hubs.
What type of battery does the KPL201 use?
It is powered by a 24V/205Ah Li-ion battery, paired with a 100A external charger for fast opportunity charging and zero maintenance.
How does the KPL201 improve operator comfort?
The truck features a suspended platform, padded backrest, and ergonomic tiller, providing a comfortable and safe working environment during long shifts.
Is the KPL201 safe for high-intensity warehouse use?
Yes. It includes power steering for stable maneuvering, automatic speed reduction during cornering, and a compact chassis design to improve stability and safety in busy or narrow areas.
Are there customization options available for the KPL201?
Yes. Options include different fork lengths, wheel materials, and cold storage adaptations, allowing businesses to tailor the truck to their specific needs.
