1500 Kg
F1
Electric Pallet Truck 1.5 t
Contact Us
About the F1
The F1 builds on EP’s trusted pallet truck heritage, offering a reliable 1.5-tonne electric solution powered by a maintenance-free 24V/65Ah AGM battery. With its compact structure and ergonomic tiller design, the F1 provides smooth operation and dependable performance for everyday material handling tasks.
Get a QuoteDatasheet
Product Application

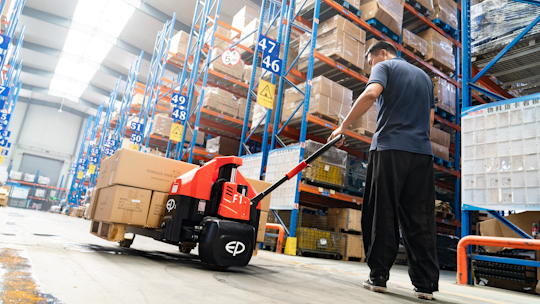

The F1 is engineered for heavy-duty use in warehouses, manufacturing plants, and construction sites. Its strong chassis and improved tiller—featuring a turtle speed switch and mechanical spring rebound—deliver better manoeuvrability and reduce operator effort. Compact yet powerful, the F1 is a trusted partner for demanding daily operations.
Features
Durable chassis
Built on a strong and reliable frame, the F1 is designed to handle demanding industrial environments, ensuring stability and endurance in daily operations.
AGM battery with integrated charger
Equipped with a maintenance-free 24V/65Ah AGM battery and a 24V/10A integrated charger, the F1 offers 5–6 hours of real working time for continuous performance.
Ergonomic tiller design
The highly integrated tiller provides easy control, efficient maneuverability, and reduced operator effort, making daily handling tasks safer and more comfortable.
Market-proven drive unit
With a tested and reliable drive unit, the F1 delivers smooth, stable power and consistent performance for both light and heavy-duty applications.
Request a quote
Specifications for the F1
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | F1 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 941 mm |
| Wheelbase | 1230 mm |
| Service weight | 142 kg |
| Axle loading, laden front/rear | 543/1099 kg |
| Axle loading, unladen front/rear | 127/15 kg |
| Tyres | Polyurethane |
| Tyre size, front | 210x70mm |
| Tyre size, rear | 80x60 / 74x88mm |
| Wheels, number front/rear (x=drive wheels) | 1x 2/4, 1x 2/2 |
| Tread width, rear | 410 (535) mm |
| Lift | ["105"] mm |
| Overall length | 1618 mm |
| Length to face of forks | 460 mm |
| Overall width | 620/685 mm |
| Fork dimensions | 55/150/1150 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2203 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2117 mm |
| Turning radius | 1440 mm |
| Travel speed, laden/unladen | 4/4.5 km/h |
| Lift speed, laden/unladen | 0.02/0.026 m/s |
| Lowering speed, laden/unladen | 0.069/0.055 m/s |
| Max. gradeability, laden/unladen | 5/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 0.5 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 65 Ah |
| Battery type | AGM |
| Battery weight | 15x2 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | <74 dB(A) |
FAQs
What type of battery does the F1 use?
The F1 is equipped with a maintenance-free 24V/65Ah AGM battery and an integrated charger, delivering up to 5–6 hours of continuous operation.
In what environments is the F1 most suitable?
The F1 is built for industrial environments such as warehouses, manufacturing facilities, and construction sites, where durability and endurance are essential.
How does the tiller improve operator comfort?
The integrated tiller includes a turtle speed switch and mechanical spring rebound, providing precise manoeuvrability and reducing operator fatigue.
Is the F1 easy to maintain?
Yes. Its integrated design and proven drive unit make the F1 simple to maintain while ensuring reliable daily performance.
What is the load capacity of the F1?
The F1 offers a 1.5-tonne load capacity, making it a robust choice for heavy-duty material handling tasks.
