2000 kg
ET208
Electric Pallet Truck
Contact Us
About the ET208
The ET208 is a 2.0 tonne capacity electric walk-type pallet/stack truck engineered by EP Equipment for ease of operation and maintenance. It features a new chassis kit for simpler servicing, an upgraded system for stronger adaptability, and improved configuration for smoother workflow. With its compact dimensions and pedestrian style drive mode, the ET208 offers high performance in constrained environments.
Get a QuoteDatasheet
Product Application

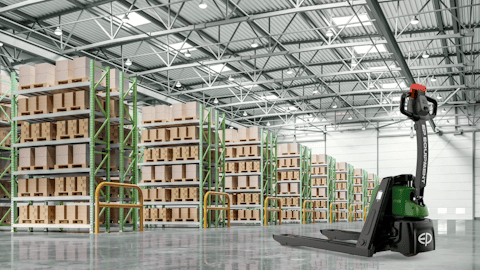

Designed for indoor warehouses, distribution centres, retail storerooms and logistics areas with narrow aisles, the ET208 is ideal for lifting and transporting pallets, moving goods in staging zones, and managing high-intensity load flows. Its 2 tonne rated capacity, compact width (560 mm/685 mm) and short turning radius (approx. 1 403 mm) make it particularly suited to busy storage environments where agility and throughput matter.
Features
2.0 tonne rated load capacity
The ET208 supports a load rating of 2,000 kg, offering reliable capacity for standard pallet movements and medium-duty material-handling operations.
Compact chassis and tight turning radius
With width options of 560 mm or 685 mm and a turning radius of about 1,403 mm, the ET208 is designed to manoeuvre efficiently in narrow aisles and constrained warehouse spaces.
Updated modular components for service ease
The ET208 uses a completely new component kit and system configuration that enhances serviceability and operational adaptability, reducing maintenance time and simplifying upkeep.
Pedestrian-style electric drive for versatile indoor use
The walk-behind drive style enables flexible use in indoor storage, retail backrooms and load staging areas. The ET208’s electric motor and control systems deliver smooth, quiet performance with minimal operator fatigue.
Request a quote
Specifications for the ET208
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ET208 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 947 mm |
| Wheelbase | 1198 mm |
| Service weight | 142 kg |
| Axle loading, laden front/rear | 679/1463 kg |
| Axle loading, unladen front/rear | 96/22 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф190x55mm |
| Tyre size, rear | Ф80x61mm |
| Additional wheels (castor wheels) | Ф74x30mm |
| Wheels, number front/rear (x=drive wheels) | 1x-/4 |
| Tread width, front | 410 mm |
| Tread width, rear | 410（535） mm |
| Height, mast lowered | 650 mm |
| Free lift | 80 mm |
| Lift | ["110"] mm |
| Seat height relating to SIP/stand height | 1200 mm |
| Height drawbar in driving position min./max. | 650/1200 mm |
| Height, lowered | 80 mm |
| Length of loading surface | 1566 |
| Overall length | 1566 mm |
| Length to face of forks | 416 mm |
| Overall width | 560（685） mm |
| Fork dimensions | 50/150/1150 mm |
| Distance between fork-arms | 560 mm |
| Distance between wheel arms/loading surfaces | 1198 |
| Ground clearance, laden, below mast | 80 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2163 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2076 mm |
| Turning radius | 1403 mm |
| Travel speed, laden/unladen | 4.5/4.7 km/h |
| Lift speed, laden/unladen | 0.013/0.016 m/s |
| Lowering speed, laden/unladen | 0.037/0.030 m/s |
| Drawbar pull, laden/unladen | 142 |
| Max. drawbar pull, laden/unladen | 6/16N |
| Max. gradeability, laden/unladen | 6\16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 0.8 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 20 Ah |
| Battery type | Li-Ion |
| Battery weight | 11 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | A |
FAQs
What is the rated load capacity of the ET208?
The ET208 is rated for a load capacity of 2,000 kg, making it suitable for medium-duty warehouse operations.
What are the width and manoeuvrability specifications?
The ET208 is available with widths of 560 mm or 685 mm, and it has a turning radius of approximately 1,403 mm, enabling efficient movement in narrow aisles.
What design improvements support maintenance and adaptability?
The model features an entirely new component kit and system configuration, designed to improve serviceability and adaptability to diverse working conditions.
What type of operation mode does the ET208 use?
It is a pedestrian-style electric walkie truck (walk-behind operation) designed for indoor use in warehouses and logistics areas.
Is the ET208 suitable for confined warehouse environments?
Yes. Its compact width, tight turning radius and 2.0 tonne capacity make it ideal for operations where space is constrained and throughput is key.
