1500 Kg
ET158
Electric Pallet Truck
Contact Us
About the ET158

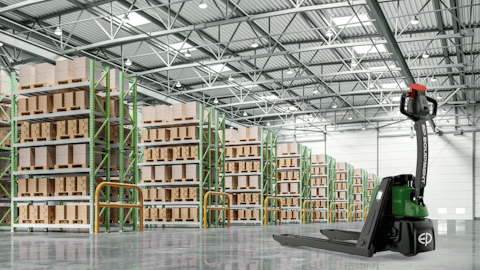

The ET158 from EP Equipment is a 1.5 t electric pallet truck designed to simplify pallet transport in warehouses, logistics hubs and retail environments. Featuring a pedestrian-style operation and a low overall vehicle weight of 115 kg (including battery), it runs on a 48 V/10 Ah (optional 20 Ah) battery and achieves rated loads of 1,500 kg. Short turn radius (1,403 mm) and tight chassis width (685 mm) make it ideal for narrow aisles and constrained spaces.
Get a QuoteDatasheet
Product Application
Ideal for high-density warehousing, retail supply chain back rooms, and manufacturing stock-rooms where agility and throughput matter, the ET158 excels in tasks such as pallet loading/unloading, staging goods for dispatch, and maneuvering in tight corridors. Its design supports operators working in compact storage zones or tail-lift delivery environments, making it a versatile tool for diverse industries.
Features
Robust 1.5-tonne load capacity
With a rated capacity of 1,500 kg, the ET158 handles standard pallet loads with ease. Its construction is designed to ensure stability and performance under sustained use.
Compact design and tight turning radius
With a turning radius of approximately 1,403 mm and a width of 685 mm, the ET158 manoeuvres easily in narrow aisles and tight spaces where larger trucks struggle.
Efficient battery system
Powered by a 48 V battery (10 Ah standard, optional 20 Ah), the ET158 offers reliable runtime for typical shifts and supports efficient operations without frequent downtime.
Low-weight, versatile design
At just 115 kg (including battery), the ET158 is lightweight for its class while offering pedestrian operation, making it flexible for both warehouse and delivery-zone use.
Request a quote
Specifications for the ET158
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ET158 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 947 mm |
| Wheelbase | 1198 mm |
| Service weight | 118 kg |
| Axle loading, laden front/rear | 530/1088 kg |
| Axle loading, unladen front/rear | 96/22 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф190x55mm |
| Tyre size, rear | Ф80x61mm |
| Additional wheels (castor wheels) | Ф74x30mm |
| Wheels, number front/rear (x=drive wheels) | 1x-/4 |
| Tread width, front | 410 mm |
| Tread width, rear | 410（535） mm |
| Lift | ["110"] mm |
| Height drawbar in driving position min./max. | 650/1200 mm |
| Height, lowered | 80 mm |
| Overall length | 1566 mm |
| Length to face of forks | 416 mm |
| Overall width | 560（685） mm |
| Fork dimensions | 55/150/1150 mm |
| Aisle width for pallets 1000×1200 crossways | 2163 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2076 mm |
| Turning radius | 1403 mm |
| Travel speed, laden/unladen | 4.5/5.0 km/h |
| Lift speed, laden/unladen | 0.022/0.025 m/s |
| Lowering speed, laden/unladen | 0.065/0.060 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 0.8 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 10 Ah |
| Battery type | Li-Ion |
| Battery weight | 6.5 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | <74 dB(A) |
