WSA161i
Heavy-Duty Initial Lifting Stacker 1.6T
Contact Us

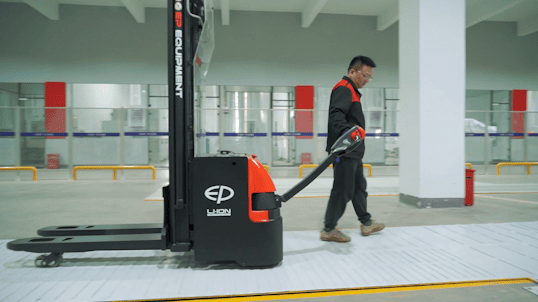

About the WSA161i
With a mast lift capacity of 1600 kg and a support arm lift capacity of 2000 kg, the WSA161i combines strength and versatility for demanding warehouse operations. Its initial lift function provides high ground clearance for ramps and uneven floors, while also enabling double pallet transport. Powered by a 24V/100Ah Li-ion battery with integrated charger, it offers opportunity charging, zero maintenance, and long service life. Mast options up to 5.5 meters allow flexible stacking in high-rack warehouses.
Get a QuoteDatasheet
Product Application
The WSA161i is tailored for warehouses, logistics centers, and distribution hubs requiring both stacking and double decking operations. Thanks to its initial lift, operators can move goods across docks or uneven surfaces with ease, while proportional lifting and lowering ensure precision and care for fragile loads. With travel speeds up to 5.5 km/h, compact 810 mm chassis width, and turning radius of 1826 mm, it delivers agility even in narrow aisles.
Features
Initial lift with double pallet handling
The WSA161i’s initial lift raises support arms independently, providing higher ground clearance for ramps and allowing operators to transport two pallets at once, doubling efficiency.
Fast stacking with proportional control
Equipped with high lifting and lowering speeds, plus proportional control, the WSA161i ensures precise and gentle handling of goods, even at heights up to 5.5 meters.
Advanced Li-ion power system
The 24V/100Ah Li-ion battery with integrated 24V/30A charger supports fast opportunity charging, zero maintenance, and emission-free operation. Optional 205Ah or lead-acid batteries extend runtime.
Operator-focused design
Practical features like integrated storage, a USB outlet for device charging, and an ergonomic tiller improve operator convenience, while the compact body and turtle speed mode ensure safe maneuverability in tight aisles.
Request a quote
Specifications for the WSA161i
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | WSA161i |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 2000 kg |
| Load capacity，load with mast lift | 1600kg |
| Load capacity, load with support arm lift | 2000kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 906 mm |
| Wheelbase | 1608 mm |
| Service weight | 1120 kg |
| Axle loading, laden front/rear | 1090/2030 kg |
| Axle loading, unladen front/rear | 780/340 kg |
| Tyres | Polyurethane |
| Tyre size, front | 230×75mm |
| Tyre size, rear | 85×70mm |
| Additional wheels (castor wheels) | 130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x,1/4 |
| Tread width, front | 538 mm |
| Tread width, rear | 385 mm |
| Max lift height | 3000 mm |
| Height, mast lowered | 2015 mm |
| Lift | ["2915"] mm |
| Height, mast extended | 3495 mm |
| Initial lift | 120mm |
| Height drawbar in driving position min./max. | 715/1200 mm |
| Height, lowered | 92 mm |
| Overall length | 2028 mm |
| Length to face of forks | 878 mm |
| Overall width | 810 mm |
| Fork dimensions | 60×185×1150 mm |
| Fork carriage width | 750 mm |
| Distance between fork-arms | 570 mm |
| Ground clearance, laden, below mast | 14 mm |
| Ground clearance, centre of wheelbase | 14 mm |
| Aisle width for pallets 1000×1200 crossways | 2646 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2560 mm |
| Turning radius | 1826 mm |
| Travel speed, laden/unladen | 5/5.5 km/h |
| Lift speed, laden/unladen | 0.23/0.3 m/s |
| Lowering speed, laden/unladen | 0.4/0.36 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 4.5 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 100 Ah |
| Battery weight | 40 kg |
| Energy consumption according to DIN EN 16796 | 0.8kWh/h |
| Turnover output according to VDI 2198 | 56 |
| Turnover efficiency according to VDI 2198 | 55.01 |
| Type of drive unit | AC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What is the load capacity of the WSA161i?
The WSA161i can handle 1600 kg on the mast and up to 2000 kg on the support arms when using the initial lift.
What is the purpose of the initial lift function?
The initial lift raises the support arms independently, providing more ground clearance for uneven floors or ramps and enabling double pallet handling (double decking).
How high can the WSA161i lift?
Mast options are available up to 5.5 meters, allowing precise and efficient stacking in medium-to-high warehouse racking systems.
What type of battery does the WSA161i use?
It comes standard with a 24V/100Ah Li-ion battery and integrated charger, with optional upgrades to 205Ah Li-ion or lead-acid batteries for extended runtime.
What operator-friendly features are included?
The WSA161i includes integrated storage, a USB outlet for device charging, ergonomic tiller, and turtle speed mode for safe maneuvering in narrow aisles.
