1200 kg
WSA121
Heavy Duty Li-ion Stacker 1.2T
Contact Us
About the WSA121
With load capacities of 1200 kg (WSA121) and 1600 kg (WSA161), the WSA Series offers heavy-duty performance with exceptional precision. Capable of lifting up to 4.5 meters in just 15 seconds, these stackers maximize turnover efficiency. Their compact chassis and reduced turning radius make them ideal for narrow aisles, while the Li-ion battery with integrated charger ensures rapid, maintenance-free charging.
Get a QuoteDatasheet
Product Application

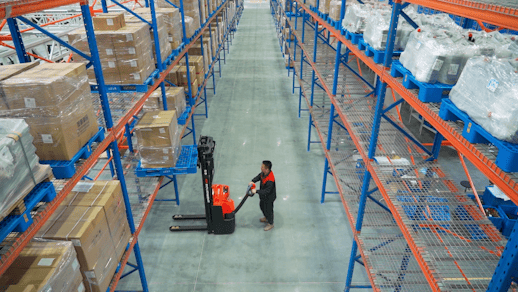

The WSA Series is designed for intensive warehouse operations, distribution centers, and logistics facilities where stacking speed, precision, and uptime are critical. Thanks to proportional lifting control, operators can stack pallets smoothly and safely, even in multi-level racking. Compact size and improved visibility make the WSA Series highly effective in confined areas, while its strong mast options provide reliable residual capacity at high lift levels.
Features
Fast and precise stacking
The WSA Series achieves lift heights of up to 4.5 m in just 15 seconds, dramatically improving stacking speed. The proportional lifting system ensures precise pallet placement in multi-level racking.
User-friendly details
The redesigned cover includes a storage pocket and USB charging outlet, letting operators store documents or recharge devices while working. Ergonomic tiller design and creep speed mode further enhance safe and comfortable operation.
Compact design with great visibility
With shorter length to face of forks and reduced turning radius (as low as 1446 mm), the WSA stackers are perfect for confined aisles. The WSA161 includes two side cylinders as standard, improving operator visibility during lifting.
Advanced Li-ion power system
Equipped with a 24V/100Ah Li-ion battery and integrated charger, the WSA Series supports fast, flexible charging and zero maintenance. Optional larger 205Ah Li-ion batteries extend operating time for multi-shift applications.
Request a quote
Specifications for the WSA121
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | WSA121 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1200 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 690 mm |
| Wheelbase | 1196 mm |
| Service weight | 955 kg |
| Axle loading, laden front/rear | 715/1440 kg |
| Axle loading, unladen front/rear | 645/310 kg |
| Tyres | Polyurethane |
| Tyre size, front | 230×75mm |
| Tyre size, rear | 85×70mm |
| Additional wheels (castor wheels) | 130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x，1/4 |
| Tread width, front | 538 mm |
| Tread width, rear | 406 mm |
| Max lift height | 4800 mm |
| Height, mast lowered | 1970 mm |
| Lift | ["2915"] mm |
| Height, mast extended | 3425 mm |
| Height drawbar in driving position min./max. | 715/1200 mm |
| Height, lowered | 90 mm |
| Width of loading surface | 170 |
| Overall length | 1864 mm |
| Length to face of forks | 714 mm |
| Overall width | 810 mm |
| Fork dimensions | 65×170×1150 mm |
| Fork carriage width | 750 mm |
| Distance between fork-arms | 570 mm |
| Ground clearance, laden, below mast | 25 mm |
| Ground clearance, centre of wheelbase | 25 mm |
| Aisle width for pallets 1000×1200 crossways | 2323 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2296 mm |
| Turning radius | 1446 mm |
| Travel speed, laden/unladen | 5/5.5 km/h |
| Lift speed, laden/unladen | 0.23/0.3 m/s |
| Lowering speed, laden/unladen | 0.4/0.36 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 4.5 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 100 Ah |
| Battery type | Li-Ion |
| Battery weight | 40 kg |
| Energy consumption according to DIN EN 16796 | 0.79 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 64 |
| Turnover efficiency according to VDI 2198 | 46.24 |
| Type of drive unit | AC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What are the load capacities of the WSA Series?
The WSA Series includes two models: the WSA121 with 1200 kg capacity and the WSA161 with 1600 kg capacity, both designed for heavy-duty stacking operations.
How high can the WSA stackers lift?
The WSA stackers can lift up to 4.5 meters, with proportional lifting control that ensures precise pallet placement even at high rack levels.
What type of battery powers the WSA Series?
Standard versions come with a 24V/100Ah Li-ion battery and integrated charger. Optional larger 205Ah Li-ion batteries or lead-acid configurations are also available for extended runtime.
Are the WSA stackers suitable for narrow aisle operations?
Yes. With compact chassis design and a turning radius as small as 1446 mm, the WSA stackers are optimized for use in confined spaces and narrow warehouse aisles.
What operator-focused features are included in the WSA Series?
The WSA Series is designed with user convenience in mind, offering a redesigned cover with storage pocket, USB charging outlet, ergonomic tiller, and creep speed mode for safe, comfortable operation.
