2500 kg
TPL251
Low Level Order Picker 2.5T
Contact Us

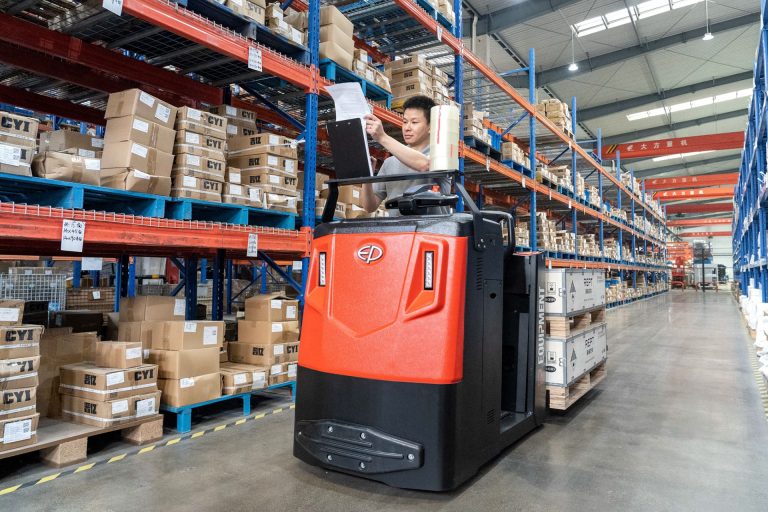

About the TPL251
The TPL251 combines power, precision, and operator comfort in one compact machine. With a travel speed of up to 14.5 km/h, an optional fork length of 2400 mm for dual-pallet handling, and a 24V/280Ah Li-ion battery, it delivers extended runtime and fast acceleration. Its electric power steering, automatic tiller centering, and low-entry platform ensure smooth operation and maximum productivity in multi-shift warehouse environments.
Get a QuoteDatasheet
Product Application
The TPL251 is the ideal solution for high-volume order picking and long-distance horizontal transport in distribution centers, retail logistics, and manufacturing supply chains. Designed for low-level order picking, it allows operators to efficiently collect goods along aisles while maintaining excellent control and visibility. With walk-along side buttons for precise truck movement and an ergonomic suspended platform, the TPL251 enhances both productivity and operator well-being in demanding warehouse operations.
Features
High-speed performance and dual-pallet handling
With a top travel speed of 14.5 km/h, the TPL251 significantly increases throughput for long-distance order picking. The optional 2400 mm forks enable the handling of two pallets simultaneously, optimizing load cycles and minimizing travel time between aisles.
Advanced Li-ion power system
Powered by a 24V/280Ah Li-ion battery, the TPL251 ensures long-lasting performance with zero maintenance and opportunity charging via an external plug. Optional 410Ah capacity provides even longer runtime, making it ideal for multi-shift operations without downtim.
Ergonomic and comfortable operator station
Designed for operator well-being, the suspended platform and low-step entrance minimize vibration and fatigue. The foam backrest and wide standing space provide comfort during long shifts, while optional storage brackets accommodate accessories like scanners or WMS terminals.
Precision handling and easy operation
Equipped with electric power steering and automatic center positioning, the TPL251 ensures effortless control. Walk-along side buttons allow operators to move the truck alongside them during picking, improving workflow and reducing unnecessary steps between stops.
Request a quote
Specifications for the TPL251
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | TPL251 |
| Drive | Electric |
| Operator type | Stand-on |
| Rated capacity | 2500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 980 mm |
| Wheelbase | 2117 mm |
| Service weight | 821 kg |
| Axle loading, laden front/rear | 1050/2271 kg |
| Axle loading, unladen front/rear | 600/221 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф260x105mm |
| Tyre size, rear | Ф85x70mm |
| Additional wheels (castor wheels) | Ф180x65mm |
| Wheels, number front/rear (x=drive wheels) | 1x+1/4 |
| Tread width, front | 465 mm |
| Tread width, rear | 370/515 mm |
| Overall height | 1273 mm |
| Lift | ["120"] mm |
| Height drawbar in driving position min./max. | 1273 mm |
| Height, lowered | 85 mm |
| Length of loading surface | 1375 |
| Overall length | 2526 mm |
| Length to face of forks | 1375 mm |
| Overall width | 804 mm |
| Fork dimensions | 55/190/1150 mm |
| Distance between fork-arms | 560/685 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 3006 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2941 mm |
| Turning radius | 2172 mm |
| Travel speed, laden/unladen | 9.5/14.5 km/h |
| Lift speed, laden/unladen | 0.032/0.044 m/s |
| Lowering speed, laden/unladen | 0.045/0.037 m/s |
| Max. gradeability, laden/unladen | 5/16 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 3.3 kW |
| Lift motor rating at S3 15% | 2.2 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 280 Ah |
| Battery weight | 76 kg |
| Energy consumption according to DIN EN 16796 | 0.494 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 117.5 |
| Turnover efficiency according to VDI 2198 | 112.12 |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
FAQs
What type of operations is the TPL251 best suited for?
The TPL251 is designed for low-level order picking and horizontal transport in large distribution centers, warehouses, and manufacturing facilities. Its high travel speed (up to 14.5 km/h) and dual-pallet handling capability make it ideal for operations where efficiency, precision, and operator comfort are key to maximizing productivity.
How does the Li-ion battery system improve performance compared to traditional lead-acid options?
The 24V/280Ah Li-ion battery in the TPL251 offers longer runtime, opportunity charging, and zero maintenance. Unlike lead-acid batteries, it requires no water refilling or battery swapping. Operators can recharge during breaks or idle periods, maintaining consistent performance across multiple shifts and reducing total operating costs..
What features enhance operator comfort and safety during long picking shifts?
The TPL251 prioritizes ergonomics and operator well-being. Its suspended platform minimizes vibration, while the low step height and foam-padded backrest reduce fatigue. The electric power steering and automatic tiller centering make maneuvering effortless, ensuring safe and precise handling even in narrow aisles or crowded picking zones..
Can the TPL251 handle two pallets at once?
Yes. With the optional 2400 mm fork configuration, the TPL251 can carry two standard pallets simultaneously. This dual-pallet capability boosts productivity in large warehouses by reducing travel frequency and optimizing order-picking routes.
What customization options are available for the TPL251?
The TPL251 can be equipped with several optional accessories, including extended forks, storage brackets, document holders, and WMS terminal mounts. These options turn the order picker into a mobile workstation, allowing operators to streamline their workflow and increase picking accuracy and speed.
