2000 kg
RPL20-PRO
Heavy-duty Li-ion Ride-on Pallet Truck 2.0T
Contact Us

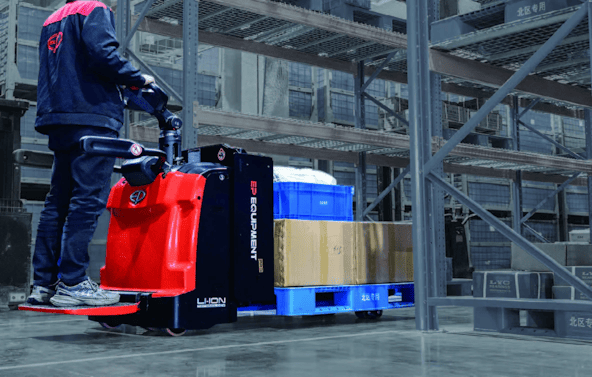

About the RPL20-PRO
The RPL 20 PRO is a professional heavy-duty ride-on pallet truck equipped with a 2000 kg load capacity and foldable operator platform. Designed for intensive warehouse and logistics operations, it delivers unmatched comfort and control thanks to EP’s Li-ion battery system, electric power steering, and height-adjustable tiller head. Its compact 652 mm chassis and powerful 3.0 kW drive motor make it ideal for both long-distance and confined-space handling.
Get a QuoteDatasheet
Product Application
Perfect for high-throughput warehouses, logistics centers, and manufacturing facilities, the RPL 20 PRO excels in long-distance pallet transport and loading dock operations. Its foldable cushioned platform and reinforced arm guards offer operator comfort and safety during extended shifts, while the compact design allows easy maneuverability in tight aisles. Whether used for cross-docking, trailer loading, or rapid pallet transfer, it ensures reliable, efficient handling in every environment.
Features
Highest driving speed of the cathegory combined with the smallest frame size
The RPL 20 PRO’s newly designed foldable platform includes vibration-absorbing cushioning that reduces operator fatigue during long shifts. It provides superior stability and comfort, even when transporting heavy loads across extended distances.
Compact and Robust Chassis
With an industry-leading 652 mm chassis length, the RPL 20 PRO offers exceptional maneuverability in narrow aisles or confined spaces. The reinforced frame ensures smooth operation and durability under full 2.0-ton loads.
Smart Digital Display and ESP Drive Modes
The intelligent multi-function display combines battery level, speed, and operating status indicators with Bluetooth connectivity and ESP drive mode selection, allowing each operator to customize driving behavior for maximum productivity and safety.
Li-Ion battery up to 24V 280Ah + external charging plug for maximum convenience
Ergonomic and Safe by Design
A height-adjustable tiller, electric power steering, and reinforced arm guards improve operator comfort and protection. Built-in USB ports and storage compartments enhance convenience, while automatic power cut-off ensures safety during charging or cable disconnection.
Request a quote
Specifications for the RPL20-PRO
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | RPL20-PRO |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 976 mm |
| Wheelbase | 1418 mm |
| Service weight | 750 kg |
| Axle loading, laden front/rear | 1130/1620 kg |
| Axle loading, unladen front/rear | 600/150 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф230x75mm |
| Tyre size, rear | Ф85x70mm |
| Additional wheels (castor wheels) | Ф130x55mm |
| Wheels, number front/rear (x=drive wheels) | 1x+2/4 |
| Tread width, front | 554 mm |
| Tread width_front | 554mm |
| Tread width, rear | 370 / 515 mm |
| Max lift height | 120 mm |
| Lift | 120 mm |
| Height drawbar in driving position min./max. | 1130/1430 mm |
| Height, lowered | 85 mm |
| Overall length | 1798 mm |
| Length to face of forks | 652 mm |
| Overall width | 770 mm |
| Fork dimensions | 55x170x1150 mm |
| Distance between fork-arms | 540/685 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2445 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2300 mm |
| Turning radius | 1645 mm |
| Travel speed, laden/unladen | 9.5/12.5 km/h |
| Lift speed, laden/unladen | 0.050/0.054 m/s |
| Lowering speed, laden/unladen | 0.067/0.054 m/s |
| Max. gradeability, laden/unladen | 8/20 % |
| Service brake | Electric/hydraulic |
| Drive motor rating S2 60 min | 3 kW |
| Lift motor rating at S3 15% | 2.2 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 24/280AH Ah |
| Battery type | Li-Ion |
| Battery weight | 76 kg |
| Energy consumption according to DIN EN 16796 | 0.317 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 136 |
| Turnover efficiency according to VDI 2198 | 163.66 |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 66 dB(A) |
FAQs
What is the load capacity of the RPL 20 PRO?
The RPL 20 PRO can lift and transport up to 2,000 kg, making it suitable for heavy-duty warehouse and logistics operations.
How fast can it travel?
Thanks to its 3.0 kW AC drive motor, the truck achieves a maximum travel speed of 12.5 km/h, ensuring efficient pallet handling over long distances.
What kind of battery does it use?
It features a 24 V / 280 Ah Li-ion battery (with an optional 205 Ah version), offering maintenance-free operation and the ability to fast charge via a 100 A external charger.
Is it suitable for narrow aisles?
Yes — the 652 mm chassis length makes it one of the most compact ride-on pallet trucks in its class, ideal for both open spaces and tight warehouse environments.
What operator features improve safety and comfort?
The RPL 20 PRO includes a foldable cushioned platform, reinforced arm guards, height-adjustable tiller, electric steering, and automatic power cut-off for maximum comfort and safety.
