6000 kg
QDD601T
Electric Tractor 6.0T
Contact Us
About the QDD601T
Built for efficiency and comfort, the QDD301T/601T series delivers 3000–6000 kg towing capacity with a low center of gravity for outstanding stability. It features a maintenance-free AC drive system, ergonomic operator station, and large solid rubber tires suitable for various terrains. With options like semi or fully enclosed cabins, this tractor ensures dependable performance across indoor warehouses and outdoor environments.
Get a QuoteDatasheet
Product Application

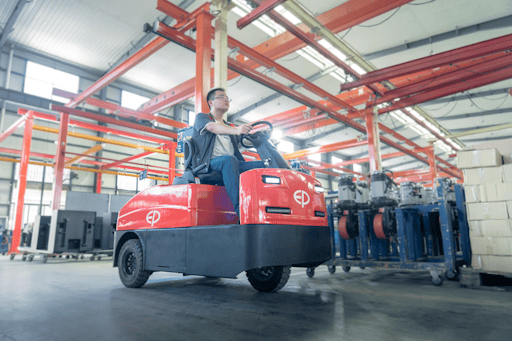

The QDD301T/601T series is ideal for factories, logistics centers, and production lines that require frequent towing of heavy loads. Thanks to its solid rubber tires and strong drawbar pull (up to 4500 N), it performs reliably on both smooth and uneven surfaces. The adjustable steering wheel and wide legroom enhance operator comfort during long shifts, while optional cabin configurations make it adaptable to all-weather operations. This model is especially suited for towing carts, parts, and pallets over medium to long distances in demanding industrial environments.
Features
Powerful and reliable AC drive system
Equipped with a high-efficiency AC motor (4–6 kW), the QDD301T/601T delivers strong traction and fast acceleration with minimal maintenance. The system ensures smooth, consistent performance even under maximum load.
Operator-centered ergonomic design
With wide legroom, lower pedal height, and an adjustable steering column, the driver experiences excellent comfort and control. A semi- or fully-enclosed cabin option provides enhanced safety and comfort in all weather conditions.
Stable and durable structure
A low center of gravity and solid rubber tires ensure excellent stability and grip on both smooth floors and uneven ground. The truck’s heavy-duty frame and vertical gearbox deliver superior reliability in demanding operations.
Easy maintenance and customization
The side-removal battery design and one-piece hood simplify daily checks and service. Optional Li-ion batteries, LED lighting, telematics, and safety accessories allow customization for diverse industry needs.
Request a quote
Specifications for the QDD601T
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | QDD601T |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 6000 kg |
| Wheelbase | 1105 mm |
| Service weight | 1150 kg |
| Axle loading, unladen front/rear | 500/650 kg |
| Tyres | Solidrubber |
| Tyre size, front | 4.00-8mm |
| Tyre size, rear | 4.00-8mm |
| Wheels, number front/rear (x=drive wheels) | 1/2x |
| Tread width, rear | 880 mm |
| Overall height | 1335 mm |
| Seat height relating to SIP/stand height | 947 mm |
| Coupling height | 267(222/312/357) mm |
| Loading height, unladen | 587 |
| Length of loading surface | 350 |
| Overhang | 462 |
| Width of loading surface | 590 |
| Overall length | 1945 mm |
| Overall width | 1010/990 mm |
| Ground clearance, centre of wheelbase | 150 mm |
| Turning radius | 1780 mm |
| Internal turning radius | 1170 |
| Travel speed, laden/unladen | 7/17 km/h |
| Drawbar pull, laden/unladen | 1200 |
| Max. drawbar pull, laden/unladen | 4500N |
| Max. gradeability, laden/unladen | 7/25 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 6 kW |
| Battery voltage/nominal capacity | 48/275V/Ah |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 275 Ah |
| Battery type | Lead Acid/Li-ion |
| Battery weight | 506 kg |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 70 dB(A) |
| Charger output current | 45 A |
FAQs
What are the towing capacities of the QDD301T and QDD601T?
The QDD301T offers a towing capacity of up to 3000 kg, while the QDD601T can tow up to 6000 kg, making this series ideal for both medium and heavy-duty logistics and manufacturing operations.
What kind of drive system does the QDD301T/601T use?
Both models are equipped with a high-performance, maintenance-free AC drive system (4 kW for the QDD301T and 6 kW for the QDD601T), providing smooth acceleration, strong traction, and excellent energy efficiency.
Can the QDD301T/601T be used outdoors?
Yes. Thanks to solid rubber tires and a low center of gravity, the QDD301T/601T can operate safely and reliably both indoors and outdoors, even on uneven surfaces. Optional semi- or fully-enclosed cabins provide protection in all weather conditions.
How comfortable is the operator’s position?
The operator compartment features an ergonomic layout with adjustable steering column, wide legroom, low pedal position, and smooth controls. This design reduces operator fatigue and enhances comfort during long shifts.
What optional features are available for the QDD301T/601T?
Optional features include Li-ion battery packs, telematics, full-cabin configurations, LED lighting, and enhanced safety systems — allowing customization for a variety of industrial and logistics applications.
