1000 kg
QDD10L
Electric Tractor 1.0T
Contact Us

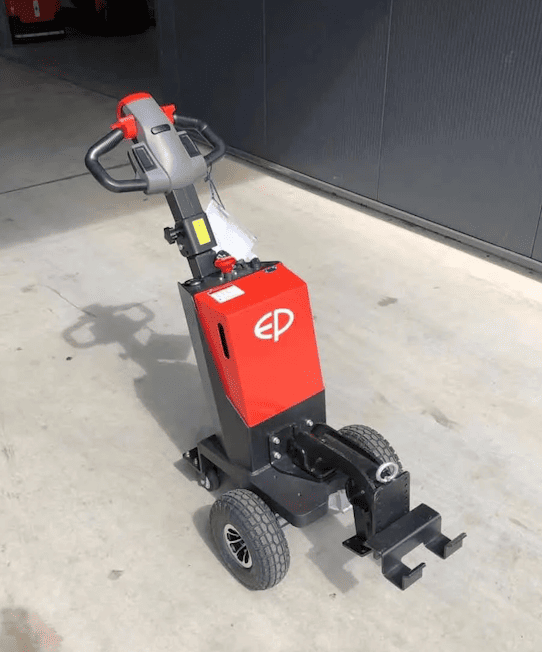

About the QDD10L
The QDD10L features a 1000 kg towing capacity, a robust Li-ion battery with on-board or external charging, and pneumatic wheels for excellent grip. Its adjustable tiller handle and compact 320 mm wheelbase ensure comfortable, stable, and agile operation in confined areas.
Get a QuoteDatasheet
Product Application
The QDD10L is ideal for indoor logistics, retail, airports, and hospitals where frequent, short-distance towing is required. It can haul cargo of 1000 kg even on 3° slopes, making it reliable for platform deliveries and cart movements. The compact design and stable pneumatic wheels make it particularly effective in narrow aisles, tight corridors, and space-constrained operations.
Features
Efficient Li-ion power with opportunity charging
Equipped with a 20Ah Li-ion battery, the QDD10L supports fast, convenient charging with both on-board and external chargers, eliminating downtime and ensuring reliability.
Compact and powerful towing
With a load capacity of 1000 kg and maximum towing force of 650 N, the tractor delivers strong performance even on slopes of up to 3°, making it reliable for short-distance heavy towing.
Comfortable and stable operation
The 250 mm pneumatic tires provide superior grip and passability, while the adjustable tiller handle ensures operator comfort and adaptability in different working conditions.
Flexible configuration and options
The QDD10L comes with useful options such as external charging, traction pin, battery indicator with time function, and solid wheel alternatives, giving operators flexibility to adapt to specific workplace requirements.
Request a quote
Specifications for the QDD10L
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | QDD10L |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1000 kg |
| Wheelbase | 320 mm |
| Service weight | 120 kg |
| Axle loading, laden front/rear | 120/0 kg |
| Axle loading, unladen front/rear | 95/25 kg |
| Tyres | Pneumatic |
| Tyre size, front | 2x Ф250x85mm |
| Tyre size, rear | 2x Ф75x32mm |
| Wheels, number front/rear (x=drive wheels) | 2x /2 |
| Tread width, front | 428 mm |
| Tread width, rear | 217 mm |
| Overall height | 896 985 1074 mm |
| Height drawbar in driving position min./max. | 841 936 1016 mm |
| Overall length | 1210~1270~1300 mm |
| Overall width | 520 mm |
| Travel speed, laden/unladen | 4.5/5 km/h |
| Drawbar pull, laden/unladen | 200/0 |
| Max. drawbar pull, laden/unladen | 650/0N |
| Max. gradeability, laden/unladen | 3/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.4 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 20 Ah |
| Battery type | Li-Ion |
| Battery weight | 5.8 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
FAQs
What is the towing capacity of the QDD10L?
The QDD10L has a towing capacity of up to 1000 kg with a maximum drawbar pull of 650 N, making it ideal for light-duty and medium-duty towing tasks
What type of battery powers the QDD10L?
It is equipped with a 24V/20Ah Li-ion battery that supports opportunity charging and comes with both internal and optional external charging systems
Is the QDD10L suitable for use in tight spaces?
Yes. With a compact wheelbase of 320 mm, lightweight design, and pneumatic wheels, the QDD10L ensures excellent maneuverability in narrow aisles and confined areas
What safety features does the QDD10L include?
The QDD10L is equipped with electromagnetic braking for secure stopping, stable pneumatic tires for slip resistance, and optional solid wheels for enhanced durability
What are the common applications of the QDD10L?
The QDD10L is widely used in airports, hospitals, retail, and distribution platforms for short-distance towing, cart handling, and platform deliveries
