1000 kg
QDD10
Electric Tractor 1.0T
Contact Us
About the QDD10

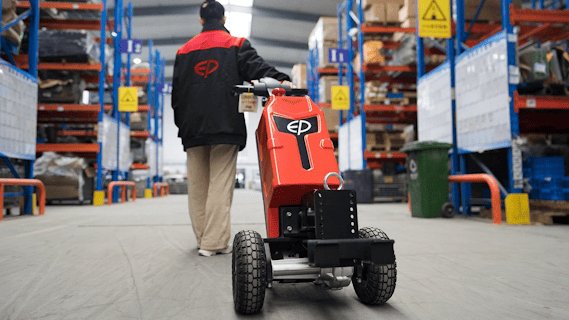

The QDD10 combines strong towing power with compact dimensions and lightweight design, making it highly maneuverable in tight spaces. With a towing capacity of 1000 kg, pneumatic wheels for excellent passability, and adjustable tiller height for operator comfort, it ensures reliable performance for diverse applications. Its built-in 24V/50Ah battery with internal charger adds convenience for daily use
Get a QuoteDatasheet
Product Application
The QDD10 is ideal for retailers, distribution platforms, medical facilities, and airports where short-distance goods transfer is frequent. Its differential mechanism and compact wheelbase of just 315 mm allow for excellent maneuverability in narrow corridors and confined areas. Capable of towing loaded carts on slopes up to 3°, it offers stable and safe transport of goods, while the lightweight 98 kg design makes it easy to handle and store.
Features
Compact and lightweight design
With a service weight of only 98 kg and a wheelbase of 315 mm, the QDD10 is easy to maneuver, store, and operate, making it suitable for confined spaces and frequent repositioning tasks.
Reliable towing capacity
Capable of towing loads up to 1000 kg with a maximum drawbar pull of 650 N, the QDD10 provides strong traction and ensures smooth goods movement even on gentle slopes.
Operator comfort and control
The adjustable tiller height, ergonomic “hands big handle head,” and mechanical steering make operation comfortable for all users. Electromagnetic brakes enhance control and safety during daily use.
Efficient battery and charging system
Equipped with a 24V/50Ah battery and internal 24V/8A charger, the QDD10 eliminates downtime by allowing convenient charging at any available socket. Optional Li-ion upgrades or battery indicators with time functions further improve efficiency.
Request a quote
Specifications for the QDD10
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | QDD10 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1000 kg |
| Wheelbase | 315 mm |
| Service weight | 98 kg |
| Axle loading, laden front/rear | 98/0 kg |
| Axle loading, unladen front/rear | 78/20 kg |
| Tyres | Pneumatic |
| Tyre size, front | 2x Ф250x85mm |
| Tyre size, rear | 2x Ф75x32mm |
| Additional wheels (castor wheels) | -mm |
| Wheels, number front/rear (x=drive wheels) | 2x /2 |
| Tread width, front | 428 mm |
| Tread width, rear | 217 mm |
| Overall height | 890 976 1068 mm |
| Height drawbar in driving position min./max. | 835 930 1010 mm |
| Overall length | 1255~1315~1345 mm |
| Overall width | 520 mm |
| Travel speed, laden/unladen | 4.5/5 km/h |
| Drawbar pull, laden/unladen | 200/0 |
| Max. drawbar pull, laden/unladen | 650/0N |
| Max. gradeability, laden/unladen | 3/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.4 kW |
| Battery voltage | 2x12 V |
| Battery nominal capacity K5 | 50 Ah |
| Battery type | Li-Ion |
| Battery weight | 19x2 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
FAQs
What is the load capacity of the QDD10?
The QDD10 is a compact and powerful electric towing tractor with a towing capacity of 1,000 kg. Despite its lightweight structure of just 98 kg, it delivers strong traction and stable towing performance, making it ideal for retail, medical, airport, and delivery applications.
How powerful and efficient is the drive system?
Equipped with a 0.4 kW DC traction motor and electromagnetic braking system, the QDD10 ensures safe and efficient operation. It offers a maximum travel speed of 5 km/h and a maximum drawbar pull of 650 N, enabling smooth and reliable handling of goods across short to medium distances.
What type of battery does the QDD10 use?
The QDD10 runs on two 12V/50Ah batteries (24V total) and features a built-in 24V/8A charger for convenient plug-in charging. This configuration provides excellent runtime and flexibility, with the option to add a battery indicator with hour meter for efficient monitoring during extended shifts.
How maneuverable is the QDD10 in tight spaces?
Designed for maximum flexibility with minimum volume, the QDD10 features a short wheelbase of just 315 mm and a compact width of 520 mm, allowing it to maneuver easily in narrow aisles and crowded areas. Its adjustable tiller height ensures ergonomic comfort for operators of different heights.
What safety and comfort features does the QDD10 offer?
The QDD10 includes mechanical steering for simple control, pneumatic front tires for excellent traction and shock absorption, and rubber drive wheels for a smooth, stable ride. Its lightweight design and electromagnetic braking system ensure both operator safety and precise stopping during towing operations.
