2000 kg
KSi201
Heavy-Duty Double-deck Stacker 2.0T
Contact Us

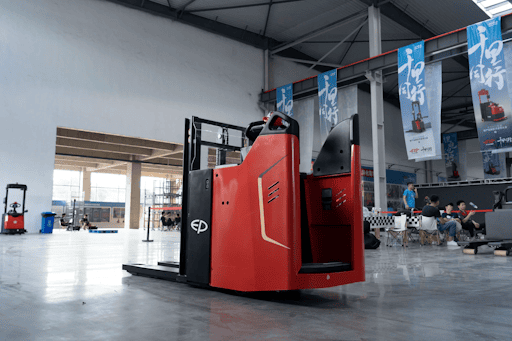

About the KSi201
With a 2000 kg load capacity and initial lift, the KSi201 allows operators to transport two pallets at once and navigate ramps or uneven floors with ease. Its 24V/205Ah Li-ion battery and integrated 30A charger enable opportunity charging and long runtime, while an optional 100A external charger delivers full recharge in just 2 hours. Compact design and a turning radius of 2236 mm ensure maneuverability in medium-to-narrow aisles.
Get a QuoteDatasheet
Product Application
The KSi201 is ideal for high-traffic warehouses, logistics centers, and distribution hubs where speed, endurance, and flexibility are crucial. Thanks to its initial lift, it provides extra ground clearance for docks and ramps and supports double decking for maximum efficiency. With lift heights of up to 2.1 m and ergonomic operator compartment including adjustable tiller, suspended platform, and padded backrest, it ensures both performance and operator comfort.
Features
Double-deck efficiency
The initial lift enables operators to move two pallets simultaneously, improving productivity and reducing travel cycles. It also provides the ground clearance needed for ramps and uneven surfaces.
Advanced Li-ion power system
Equipped with a 24V/205Ah Li-ion battery and integrated 30A charger for convenient daily use. An optional 100A external charger reduces downtime with full recharging in just 2 hours.
Ergonomic operator compartment
A suspended, vibration-free platform with protective steel shell, adjustable tiller, padded backrest, and handrails ensures operator comfort and safety in high-traffic warehouses.
Durability and proven components
The KSi201 inherits proven technology from the KPL201 series, combining a mature drive unit with AC motor and sturdy mast structure, ensuring reliability, control, and long service life.
Request a quote
Specifications for the KSi201
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | KSi201 |
| Drive | Electric |
| Operator type | Standing |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 926 mm |
| Wheelbase | 1550 mm |
| Service weight | 920 kg |
| Axle loading, laden front/rear | 990/1930 kg |
| Axle loading, unladen front/rear | 680/240 kg |
| Tyres | Polyurethane |
| Tyre size, front | 230×75mm |
| Tyre size, rear | 85×70mm |
| Additional wheels (castor wheels) | 130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x,2/4 |
| Tread width, front | 514 mm |
| Tread width, rear | 385 mm |
| Max lift height | 2100 mm |
| Height, mast lowered | 1316 mm |
| Lift | ["1600"] mm |
| Height, mast extended | 2112 mm |
| Initial lift | 120mm |
| Height drawbar in driving position min./max. | 1190/1290 mm |
| Height, lowered | 92 mm |
| Overall length | 2456 mm |
| Length to face of forks | 1306 mm |
| Overall width | 734 mm |
| Fork dimensions | 55×185×1150 mm |
| Fork carriage width | 55×185 mm |
| Distance between fork-arms | 570 mm |
| Ground clearance, laden, below mast | 16 mm |
| Ground clearance, centre of wheelbase | 16 mm |
| Aisle width for pallets 1000×1200 crossways | 3026 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2920 mm |
| Turning radius | 2236 mm |
| Travel speed, laden/unladen | 8.5/10 km/h |
| Lift speed, laden/unladen | 0.18/0.23 m/s |
| Lowering speed, laden/unladen | 0.36/0.18 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 2.5 kW |
| Lift motor rating at S3 15% | 3 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 205 Ah |
| Battery weight | 70 kg |
| Energy consumption according to DIN EN 16796 | 0.397 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 120 |
| Turnover efficiency according to VDI 2198 | 114.5 |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 120 A |
FAQs
What is the load capacity of the KSi201?
The KSi201 can handle up to 2000 kg, with its initial lift enabling double-deck transport for improved efficiency.
What is the benefit of the initial lift function?
The initial lift provides extra ground clearance for navigating ramps and uneven floors, while also allowing operators to transport two pallets at the same time.
What type of battery does the KSi201 use?
It comes standard with a 24V/205Ah Li-ion battery and integrated 30A charger. An optional 100A external charger enables full recharging in just 2 hours.
How high can the KSi201 lift?
The KSi201 offers lift heights up to 2.1 meters, making it suitable for double-deck transport and low stacking applications.
What features ensure operator comfort and safety?
The KSi201 includes a suspended vibration-free platform, protective steel shell, ergonomic adjustable tiller, padded backrest, and handrails. Safety is further enhanced with electromagnetic braking and automatic speed reduction on turns.
