1000 kg
JX2-4

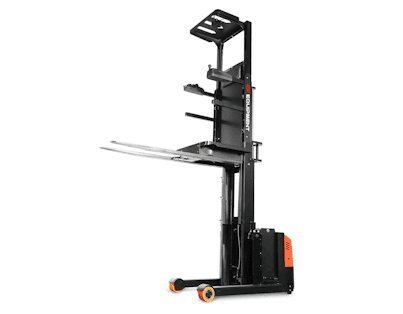

Medium Level Order Picker 1.0T
Contact Us
About the JX2-4
With a load capacity of 1000 kg and lift heights of 3.2 to 3.6 meters (picking heights up to 5.8 m), the JX2-4 ensures efficient order picking at medium rack levels. Its compact 860 mm chassis and turning radius of 1600 mm provide maneuverability in narrow aisles, while the 24V/360Ah battery delivers consistent power and runtime.
Get a QuoteDatasheet
Product Application
The JX2-4 is designed for warehouses, retail distribution centers, and logistics hubs requiring stable, safe, and efficient order picking. Its strong mast and dual lifting system ensure reliable handling, while proportional lift and lowering enhance precision. Operators benefit from wide mast visibility, an ergonomic standing platform, and optional safety add-ons such as warning lamps and buzzers for use in busy environments.
Features
High lifting capacity
With a 1000 kg load capacity and lift heights up to 3.6 meters, the JX2-4 supports stable, efficient picking at medium rack levels.
Compact and agile design
At only 860 mm wide with a turning radius of 1600 mm, the truck is ideal for confined warehouse aisles and tight operating conditions.
Reliable Li-ion-ready battery system
Equipped with a 24V/360Ah battery and integrated 50A charger, the JX2-4 provides consistent runtime and supports opportunity charging with optional external systems.
Operator comfort and safety
Ergonomic standing platform, wide mast visibility, electronic steering, and electromagnetic brakes ensure operator comfort and safe operation during intensive shifts.
Request a quote
Specifications for the JX2-4
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | JX2-4 |
| Drive | Electric |
| Operator type | Order-picker |
| Rated capacity | 1000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 115 mm |
| Wheelbase | 1365 mm |
| Service weight | 2020|2061 kg |
| Axle loading, laden front/rear | 2367/789|2378/819 kg |
| Axle loading, unladen front/rear | 814/1206|802/1259 kg |
| Tyres | Polyurethane/Solidrubber |
| Tyre size, front | φ165*120mm |
| Tyre size, rear | φ260*105mm |
| Additional wheels (castor wheels) | φ74*48mm |
| Wheels, number front/rear (x=drive wheels) | 1x，2/2 |
| Tread width, front | 740 mm |
| Tread width, rear | 570 mm |
| Height, mast lowered | 2170|2360 mm |
| Lift | ["3200|3600"] mm |
| Height, mast extended | 5410|5855 mm |
| Height of overhead guard (cabin) | 2270 mm |
| Seat height relating to SIP/stand height | 220 mm |
| Height of wheel arms | 740mm |
| Stand height, elevated | 3360|3815 |
| Height, lowered | 63 mm |
| Overall length | 2750 mm |
| Length to face of forks | 1680 mm |
| Overall width | 860 mm |
| Fork dimensions | 40/100/1070 mm |
| Fork carriage width | 100 mm |
| Distance between fork-arms | 540 mm |
| Ground clearance, laden, below mast | 2020 mm |
| Ground clearance, centre of wheelbase | 50 mm |
| Aisle width for pallets 1000×1200 crossways | 3100 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3150 mm |
| Turning radius | 1600 mm |
| Travel speed, laden/unladen | 8/8 km/h |
| Lift speed, laden/unladen | 0.13/0.16 m/s |
| Lowering speed, laden/unladen | 0.41/0.25 m/s |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 3.3 kW |
| Lift motor rating at S3 15% | 3 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 360 Ah |
| Battery type | Lead Acid |
| Battery weight | 330 kg |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 70 dB(A) |
| Charger output current | 50 A |
FAQs
What is the maximum load capacity of the JX2-4?
The JX2-4 supports up to 1000 kg, making it suitable for heavier order-picking tasks compared to smaller models.
How high can the JX2-4 lift?
It offers lift heights between 3.2 and 3.6 meters, allowing operators to reach picking heights up to 5.8 meters.
What type of battery does the JX2-4 use?
The truck is powered by a 24V/360Ah battery with an integrated 50A charger, with optional external chargers available for extended runtime.
How compact is the JX2-4 for warehouse operations?
With a chassis width of 860 mm and a turning radius of 1600 mm, the JX2-4 is designed to maneuver effectively in narrow aisles.
What safety features are included?
The JX2-4 ensures operator safety with electronic steering, electromagnetic brakes, wide mast visibility, and optional add-ons such as warning lamps and buzzers.
