700 kg
JX2-3
Medium Level Order Picker 0.7T
Contact Us
About the JX2-3
With a 700 kg load capacity and lift heights up to 2.9 meters (picking height 5.1 m), the JX2-3 offers stability, precision, and maneuverability. Its compact 800 mm chassis and turning radius of 1515 mm ensure smooth operation in narrow aisles. Powered by a 24V/360Ah battery and 3 kW lift motor, it provides reliable runtime and strong performance.
Get a QuoteDatasheet
Product Application

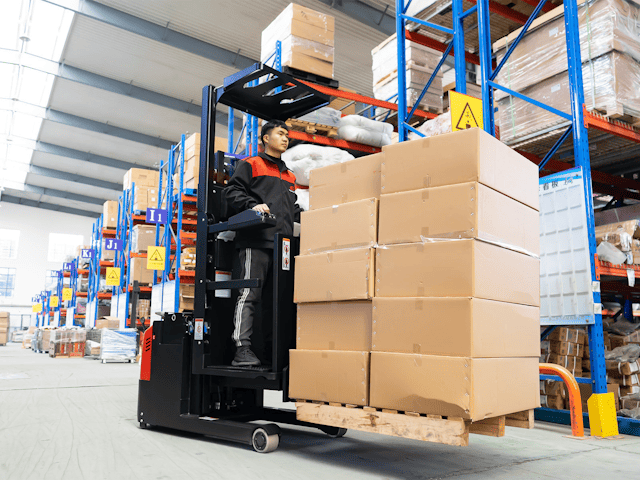

The JX2-3 is ideal for medium-level order picking in e-commerce, retail, and warehouse operations. Its elevated stand height (up to 3.0 m) ensures easy access to racking, while proportional lifting and lowering guarantee accuracy and care when handling goods. With a wide field of view, stable mast design, and optional safety add-ons such as warning lamps or buzzers, it adapts to diverse warehouse environments.
Features
Efficient medium-level picking
With lift heights up to 2.9 m and a maximum picking height of 5.1 m, the JX2-3 is designed for efficient access to medium-level racking.
Compact and stable chassis
At only 800 mm wide with a turning radius of 1515 mm, the truck provides excellent maneuverability, even in narrow aisles and busy warehouse environments.
Reliable Li-ion-ready battery system
Standard with a 24V/360Ah battery, the JX2-3 supports opportunity charging and can be paired with optional external chargers for longer operations.
Operator-focused design and safety
The elevated standing platform, ergonomic tiller, and electronic steering reduce operator fatigue, while safety is enhanced through wide visibility, electromagnetic braking, and optional warning systems.
Request a quote
Specifications for the JX2-3
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | JX2-3 |
| Drive | Electric |
| Operator type | Order-picker |
| Rated capacity | 700 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 140 mm |
| Wheelbase | 1330 mm |
| Service weight | 1780|1794 kg |
| Axle loading, laden front/rear | 1753/592|1758/602 kg |
| Axle loading, unladen front/rear | 707/1072|712/1082 kg |
| Tyres | Polyurethane/Solidrubber |
| Tyre size, front | φ150*90mm |
| Tyre size, rear | φ230*75mm |
| Additional wheels (castor wheels) | φ74*48mm |
| Wheels, number front/rear (x=drive wheels) | 1x，2/2 |
| Tread width, front | 710 mm |
| Tread width, rear | 570 mm |
| Height, mast lowered | 1800|2000 mm |
| Free lift | 737 mm |
| Lift | ["2463|2863"] mm |
| Height, mast extended | 4745|5145 mm |
| Height of overhead guard (cabin) | 2345 mm |
| Seat height relating to SIP/stand height | 220 mm |
| Height drawbar in driving position min./max. | 50 mm |
| Height of wheel arms | 220mm |
| Stand height, elevated | 2620|3020 |
| Height, lowered | 63 mm |
| Overall length | 2725 mm |
| Length to face of forks | 1655 mm |
| Overall width | 800 mm |
| Fork dimensions | 35*100*1070 mm |
| Fork carriage width | 100 mm |
| Distance between fork-arms | 560 mm |
| Distance between wheel arms/loading surfaces | 1330 |
| Ground clearance, centre of wheelbase | 50 mm |
| Aisle width for pallets 1000×1200 crossways | 3050 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3160 mm |
| Turning radius | 1515 mm |
| Travel speed, laden/unladen | 6/6 km/h |
| Lift speed, laden/unladen | 0.13/0.16 m/s |
| Lowering speed, laden/unladen | 0.23/0.26 m/s |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 2.5 kW |
| Lift motor rating at S3 15% | 3 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 360 Ah |
| Battery type | Lead Acid |
| Battery weight | 330 kg |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 75 dB(A) |
| Charger output current | 50 A |
FAQs
What is the maximum load capacity of the JX2-3?
The JX2-3 supports up to 700 kg, making it ideal for box picking and pallet handling at medium rack levels.
How high can the JX2-3 reach?
It offers a maximum lift height of 2.9 meters, allowing operators to pick at heights up to 5.1 meters.
What type of battery powers the JX2-3?
The JX2-3 is powered by a 24V/360Ah battery, with optional external chargers available for extended runtime and quick recharging.
How compact is the JX2-3 for narrow aisle operations?
With a chassis width of 800 mm and a turning radius of 1515 mm, it is perfectly suited for maneuvering in tight warehouse spaces.
What safety features are included in the JX2-3?
Safety is ensured through electromagnetic braking, a wide operator field of view, stable mast design, and optional add-ons like warning lamps and reversing buzzers.
