1200 kg
EST124
Electric Stacker 1.2T
Contact Us
About the EST124
The EST124 offers a load capacity of 1200 kg and lift heights up to 3.6 m, making it a practical solution for medium rack systems. It comes with a 24V/80Ah AGM battery and integrated 10A charger for convenient daily use. Reinforced with a strong chassis and metal cover, the truck ensures durability and stability in light-duty warehouse operations.
Get a QuoteDatasheet
Product Application

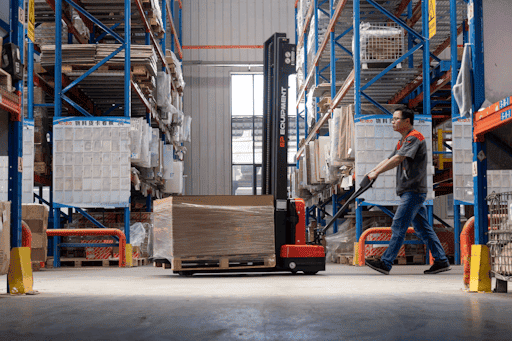

Designed for shops, warehouses, and distribution centers, the EST124 is ideal for light stacking in rack systems ranging from 2.5 m to 3.6 m. Its compact design, polyurethane wheels, and turning radius of 1415 mm make it suitable for navigating narrow aisles and confined spaces. Operators benefit from ergonomic tiller control and turtle speed mode for precise and safe handling.
Features
Strong and stable chassis
The EST124 is built with a metal cover and reinforced frame that reduces stress and deformation under heavy loads. This ensures reliability and safety during everyday stacking operations.
Medium-height stacking capability
With lift heights of up to 3.6 meters, the EST124 is ideal for warehouses with medium rack systems. Its rigid mast structure allows smooth and consistent lifting performance.
Convenient charging system
Equipped with a 24V/80Ah AGM battery and integrated 10A charger, the EST124 supports easy daily charging without the need for external equipment, ensuring flexibility and reduced downtime.
Market-proven components
Designed with components from EP’s bestsellers, including tiller head, drive unit, and hydraulic system, the EST124 guarantees reliable performance, simplified parts management, and reduced maintenance costs.
Request a quote
Specifications for the EST124
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EST124 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1200 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 800 mm |
| Wheelbase | 1195 mm |
| Service weight | 470 kg |
| Axle loading, laden front/rear | 520/1150 kg |
| Axle loading, unladen front/rear | 345/125 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ø210×70mm |
| Tyre size, rear | Ø74×72mm |
| Additional wheels (castor wheels) | Ø130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x，1/2 |
| Tread width, front | 645 mm |
| Tread width, rear | 418 mm |
| Max lift height | 3013 mm |
| Height, mast lowered | 2067 mm |
| Lift | ["2930"] mm |
| Height, mast extended | 3532 mm |
| Height drawbar in driving position min./max. | 760/1140 mm |
| Height, lowered | 90 mm |
| Overall length | 1706 mm |
| Length to face of forks | 556 mm |
| Overall width | 925 mm |
| Fork dimensions | 60/170/1150 mm |
| Fork carriage width | 680 mm |
| Distance between fork-arms | 570 mm |
| Ground clearance, centre of wheelbase | 23 mm |
| Aisle width for pallets 1000×1200 crossways | 2294 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2226 mm |
| Turning radius | 1462 mm |
| Travel speed, laden/unladen | 4.0/4.5 km/h |
| Lift speed, laden/unladen | 0.10/0.15 m/s |
| Lowering speed, laden/unladen | 0.12/0.10 m/s |
| Max. gradeability, laden/unladen | 3/10 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 2.2 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 80 Ah |
| Battery type | AGM |
| Battery weight | 38 kg |
| Energy consumption according to DIN EN 16796 | 0.57 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 31.2 |
| Turnover efficiency according to VDI 2198 | 51 |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 10 A |
FAQs
What is the maximum load capacity of the EST124?
The EST124 can lift up to 1200 kg, making it suitable for light to medium stacking tasks.
What is the maximum lift height of the EST124?
The truck offers lift heights up to 3.6 meters, ideal for medium rack storage systems.
What type of battery does the EST124 use?
It comes equipped with a 24V/80Ah AGM battery and an integrated 10A charger, allowing easy charging without additional equipment.
How does the EST124 ensure durability and reliability?
The reinforced chassis with a metal cover minimizes deformation under load, while EP’s proven components like the tiller head and hydraulic system enhance reliability.
Is the EST124 suitable for narrow warehouse aisles?
Yes. With a compact chassis, polyurethane wheels, and a 1415 mm turning radius, the EST124 provides excellent maneuverability in confined warehouse spaces.
