1200 kg
EST122
Pedestrian Stacker 1.2T
Contact Us

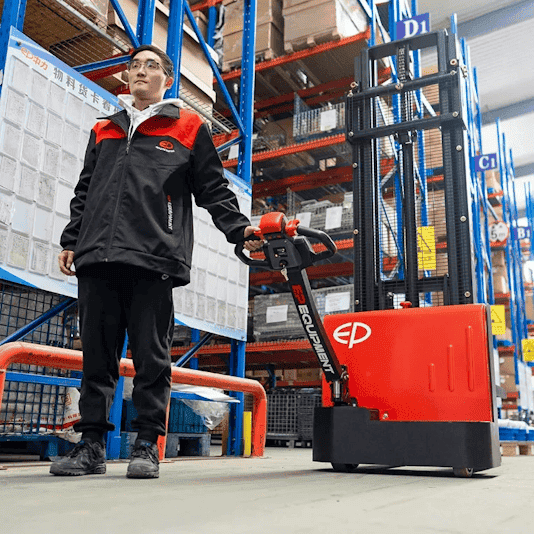

About the EST122
With a load capacity of 1200 kg and a lift height of up to 2430 mm, the EST122 offers reliable stacking performance for light-duty applications. Its rigid frame, lateral drive, and compact design provide excellent stability and maneuverability in narrow aisles. Powered by a 24V/85Ah AGM battery with integrated charger, it ensures simple operation and easy maintenance.
Get a QuoteDatasheet
Product Application
The EST122 is ideal for warehouses, shops, and distribution centers handling low-to-medium intensity stacking tasks. Thanks to its compact size and small turning radius (1458 mm), it navigates easily in confined spaces. Equipped with a crawl speed button for precise control and an ergonomic tiller design, it supports operators in safe and comfortable material handling.
Features
Strong and stable chassis
The EST122 features a reinforced chassis with side beams and plates, reducing stress and deformation under load. This design ensures a longer service life and dependable stability during daily stacking tasks.
Rigid duplex mast
Its rigid mast, built with a beam structure, enhances lifting stability and allows smooth stacking up to 2430 mm. Operators benefit from consistent performance even in demanding cycles.
Easy and precise operation
Equipped with an extra-long offset tiller and crawl speed button, the stacker provides improved visibility and nimble maneuverability. These features allow safe and precise operation in narrow aisles and confined workspaces.
Efficient hydraulic system
The high-quality hydraulic pump reduces noise while ensuring high efficiency and durability. Shortened lifting times improve overall productivity in daily operations.
Request a quote
Specifications for the EST122
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EST122 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1200 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 798 mm |
| Wheelbase | 1212 mm |
| Service weight | 590 kg |
| Axle loading, laden front/rear | 650/1140 kg |
| Axle loading, unladen front/rear | 450/140 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ø210×70mm |
| Tyre size, rear | Ø74×72mm |
| Additional wheels (castor wheels) | Ø130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x，1/4 |
| Tread width, front | 531 mm |
| Tread width, rear | 405 mm |
| Max lift height | 3013 mm |
| Height, mast lowered | 2104 mm |
| Lift | ["2930"] mm |
| Height, mast extended | 3532 mm |
| Height drawbar in driving position min./max. | 760/1140 mm |
| Height, lowered | 90 mm |
| Overall length | 1715 mm |
| Length to face of forks | 565 mm |
| Overall width | 792 mm |
| Fork dimensions | 60/170/1150 mm |
| Fork carriage width | 680 mm |
| Distance between fork-arms | 570 mm |
| Ground clearance, centre of wheelbase | 23 mm |
| Aisle width for pallets 1000×1200 crossways | 2296 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2230 mm |
| Turning radius | 1464 mm |
| Travel speed, laden/unladen | 4.2/4.5 km/h |
| Lift speed, laden/unladen | 0.09/0.13 m/s |
| Lowering speed, laden/unladen | 0.10/0.085 m/s |
| Max. gradeability, laden/unladen | 3/10 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 2.2 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 85 Ah |
| Battery type | AGM |
| Battery weight | 47 kg |
| Energy consumption according to DIN EN 16796 | 0.62 ¹⁾kWh/h |
| Turnover output according to VDI 2198 | 31.2 |
| Turnover efficiency according to VDI 2198 | 55.12 |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 10 A |
FAQs
What is the maximum load capacity of the EST122?
The EST122 can lift up to 1200 kg, making it suitable for light-duty stacking operations in shops, warehouses, and distribution centers.
What is the maximum lift height of the EST122?
The duplex mast allows stacking up to 2430 mm, ensuring efficient use of vertical storage space.
What type of battery does the EST122 use?
It comes with a 24V/85Ah AGM maintenance-free battery and an integrated charger, providing simple charging and low maintenance.
How does the EST122 ensure stability and durability?
The reinforced chassis with side beams and a rigid mast design minimizes deformation, ensuring long-term stability and safe operation under load.
Is the EST122 easy to operate in narrow spaces?
Yes. With a 1458 mm turning radius, extra-long offset tiller, and crawl speed button, the EST122 provides excellent maneuverability and precise handling in confined areas.
