ESA121 Duplex
Electric Pedestrian Stacker Duplex Mast 1.2T
Contact Us
About the ESA121 Duplex
With a 1200 kg load capacity and lift height up to 4.1 meters, the ESA121 Duplex offers excellent stability and visibility thanks to its H-beam mast with two side cylinders. It features faster lifting and lowering speeds compared to previous models, ensuring higher efficiency. Powered by either AGM or Li-ion batteries with integrated charger, it provides convenience and flexibility for daily warehouse operations .
Get a QuoteDatasheet
Product Application

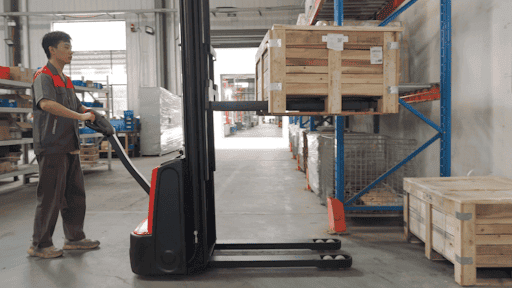

The ESA121 Duplex is designed for warehouses, retail, and distribution centers requiring medium stacking heights up to 4.1 m. Its compact chassis (826 mm width) and turning radius of 1480 mm make it suitable for use in narrow aisles. With creep speed mode and ergonomic tiller, operators can safely and precisely handle pallets in confined spaces. Its reinforced mast ensures strong residual capacity even at higher lift heights .
Features
Robust and stable duplex mast
The H-beam duplex mast with two side cylinders provides excellent visibility and high rigidity. This reduces frame torsion when lifting heavy loads and ensures stability, with residual capacity of 800 kg at 3.6 m.
Fast lifting and lowering performance
Equipped with a powerful 3.0 kW lift motor, the ESA121 Duplex offers faster lifting and lowering speeds compared to earlier models. This improves cycle times and increases overall warehouse productivity.
Flexible battery solutions
Available with both AGM and Li-ion batteries, the ESA121 Duplex meets different operational needs. The integrated charger simplifies daily charging, while maintenance-free technology reduces downtime and cost.
User-centered design
Featuring a redesigned cover with storage pockets for documents, objects, and even cups, plus an optional USB port, the ESA121 Duplex is built with operator convenience in mind. Ergonomic tiller and turtle speed mode ensure safe and comfortable operation.
Request a quote
Specifications for the ESA121 Duplex
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ESA121 Duplex |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1200 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 808 mm |
| Wheelbase | 1230 mm |
| Service weight | 700 kg |
| Axle loading, laden front/rear | 720/1180 kg |
| Axle loading, unladen front/rear | 520/180 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ø214×70mm |
| Tyre size, rear | Ø80×61mm |
| Additional wheels (castor wheels) | Ø130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x，1/4 |
| Tread width, front | 543 mm |
| Tread width, rear | 400 mm |
| Max lift height | 4113 mm |
| Tilt of mast/fork carriage forward/backward | unknown ° |
| Height, mast lowered | 1995 mm |
| Free lift | - mm |
| Lift | ["2930"] mm |
| Height, mast extended | 3460 mm |
| Seat height relating to SIP/stand height | unknown mm |
| Height drawbar in driving position min./max. | 760/1140 mm |
| Height of wheel arms | -mm |
| Coupling height | unknown mm |
| Height, lowered | 90 mm |
| Overall length | 1760 mm |
| Length to face of forks | 610 mm |
| Overall width | 826 mm |
| Fork dimensions | 60/170/1150 mm |
| Fork carriage width | 680 mm |
| Distance between wheel arms/loading surfaces | - |
| Ground clearance, laden, below mast | - mm |
| Ground clearance, centre of wheelbase | 23 mm |
| Aisle width for pallets 1000×1200 crossways | 2310 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2240 mm |
| Turning radius | 1480 mm |
| Travel speed, laden/unladen | 4.0/4.5 km/h |
| Lift speed, laden/unladen | 0.15/0.24 m/s |
| Lowering speed, laden/unladen | 0.21/0.20 m/s |
| Max. gradeability, laden/unladen | 3/10 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.65 kW |
| Lift motor rating at S3 15% | 3.0 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 105 Ah |
| Battery type | AGM |
| Battery weight | 61 kg |
| Energy consumption according to DIN EN 16796 | - kWh/h |
| Turnover output according to VDI 2198 | - |
| Turnover efficiency according to VDI 2198 | - |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 15 A |
FAQs
What is the load capacity of the ESA121 series?
All ESA121 models support a maximum load of 1200 kg, making them suitable for light-to-medium stacking operations in warehouses, retail, and distribution centers.
What mast configurations are available for the ESA121?
The ESA121 is available in three versions: Duplex mast for higher lifting efficiency and visibility, Mono mast for lower lift applications with economic design, and Straddle mast for handling closed pallets and special load types.
What type of batteries can the ESA121 use?
The ESA121 series is available with both AGM and Li-ion battery options. Both versions include an integrated charger for convenient daily charging, while Li-ion technology offers faster charging and zero maintenance.
How does the ESA121 ensure operator safety and comfort?
The stackers feature creep speed function for precise control in tight spaces, an ergonomic tiller for easy maneuverability, and a stable mast structure that ensures load safety at higher lift heights.
Can the ESA121 series be customized for different applications?
Yes. The ESA121 series can be configured with different mast heights, fork dimensions, wheel materials, and additional features like USB charging ports and battery indicators, making it adaptable to various operational needs.
