2000 kg
ES16-RSi
Electric Stacker 1.6T
Contact Us

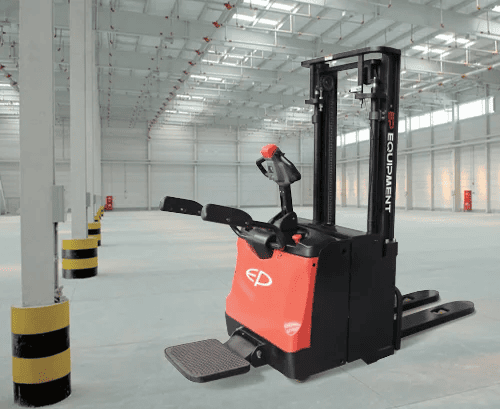

About the ES16-RSi
With a capacity of 1600 kg on mast lift and 2000 kg on support arm lift, the ES16-RSi combines efficiency and stability for medium-to-heavy warehouse tasks. Thanks to its initial lift, it can easily cross docks, ramps, and uneven surfaces while also enabling double pallet handling. Equipped with a 24V/280Ah lead-acid or optional 205Ah Li-ion battery, it delivers reliable performance with minimal downtime.
Get a QuoteDatasheet
Product Application
The ES16-RSi is ideal for distribution centers, logistics hubs, and industrial sites requiring flexibility between pedestrian and ride-on operation. With mast options up to 5.5 meters, proportional lift control, and compact 850 mm chassis width, it is perfectly suited for narrow aisles and medium-to-high racking. Its ability to carry two pallets at once doubles efficiency, making it an excellent choice for high-turnover environments.
Features
Initial lift for versatility
The ES16-RSi can raise its support arms independently, allowing operators to handle two pallets simultaneously or move smoothly across ramps and uneven floors.
Flexible mast and load handling
With mast options up to 5.5 meters, proportional lifting, and load capacities of 1600 kg (mast) or 2000 kg (support arms), it provides strength and flexibility for stacking and transport.
Operator comfort and safety
Foldable platform with vibration reduction, protection arms, and electric power steering improve comfort, while features such as automatic speed reduction, anti-rollback brake, and dual hydraulic monitoring maximize safety.
Energy-efficient power system
Standard with a 24V/280Ah lead-acid battery and optional 205Ah Li-ion upgrade, the ES16-RSi supports efficient charging, long runtime, and reduced maintenance.
Request a quote
Specifications for the ES16-RSi
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ES16-RSi |
| Drive | Electric |
| Operator type | Standing |
| Rated capacity | 2000 kg |
| Load capacity，load with mast lift | 1600kg |
| Load capacity, load with support arm lift | 2000kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 710 mm |
| Wheelbase | 1460 mm |
| Service weight | 1335 kg |
| Axle loading, laden front/rear | 1075/1860 kg |
| Axle loading, unladen front/rear | 935/400 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф230x75mm |
| Tyre size, rear | Ф85x70mm |
| Additional wheels (castor wheels) | Ф130x55mm |
| Wheels, number front/rear (x=drive wheels) | 1x+1/4 |
| Tread width, front | 574 mm |
| Tread width, rear | 366 mm |
| Max lift height | 3000 mm |
| Height, mast lowered | 2020 mm |
| Lift | ["2907"] mm |
| Height, mast extended | 3460 mm |
| Initial lift | 120mm |
| Height drawbar in driving position min./max. | 1150/1480 mm |
| Height, lowered | 93 mm |
| Overall length | 2195 mm |
| Length to face of forks | 957 mm |
| Overall width | 850 mm |
| Fork dimensions | 60/190/1150 mm |
| Fork carriage width | 800 mm |
| Distance between fork-arms | 560 mm |
| Distance between wheel arms/loading surfaces | 560 |
| Ground clearance, laden, below mast | 20 mm |
| Ground clearance, centre of wheelbase | 20 mm |
| Aisle width for pallets 1000×1200 crossways | 2665/3092 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2597/3024 mm |
| Turning radius | 1765/2192 mm |
| Travel speed, laden/unladen | 5.5/6 km/h |
| Lift speed, laden/unladen | 0.11/0.16 m/s |
| Lowering speed, laden/unladen | 0.14/0.12 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 2.5 kW |
| Lift motor rating at S3 15% | 3 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 280 Ah |
| Battery type | Lead Acid |
| Battery weight | 270 kg |
| Energy consumption according to DIN EN 16796 | N/AkWh/h |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What is the maximum load capacity of the ES16-RSi?
The ES16-RSi can handle 1600 kg on the mast and up to 2000 kg on the support arms when using the initial lift function.
What is the advantage of the initial lift?
The initial lift allows the support arms to be raised independently, making it easier to cross ramps or uneven surfaces and enabling operators to transport two pallets at once (double decking).
How high can the ES16-RSi lift?
The stacker offers mast options up to 5.5 meters, combined with proportional lifting and lowering for precise pallet placement.
What battery options are available?
It comes standard with a 24V/280Ah lead-acid battery, with an optional 205Ah Li-ion version that supports fast charging, longer lifespan, and zero maintenance.
What safety features are included in the ES16-RSi?
Key safety functions include automatic speed reduction at elevated mast heights, anti-rollback brake, emergency reverse and disconnect buttons, dual hydraulic monitoring, and foldable platform with protection arms for operator stability.
