1600 kg
ES16-RS
Electric Stacker 1.6T
Contact Us

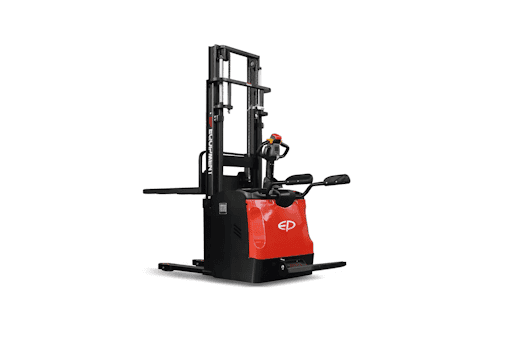

About the ES16-RS
With a load capacity of 1600 kg and lift heights up to 5.5 meters, the ES16-RS is designed for medium-to-heavy stacking tasks. Its compact 850 mm chassis and turning radius of 1730 mm provide agility in narrow aisles, while the foldable platform and protection arms ensure comfort and safety for operators. The AC drive system, proportional lift option, and two-speed lowering enhance precision and reliability.
Get a QuoteDatasheet
Product Application
The ES16-RS is suitable for warehouses, distribution centers, and manufacturing facilities where stability and efficiency are essential. Its high-strength chassis and mast options allow it to handle intensive stacking cycles, while electronic steering and dual monitoring systems support safe operation. Optional features such as Li-ion batteries, remote monitoring, and side supports make the ES16-RS adaptable to diverse operational needs.
Features
Strong and reliable design
A high-strength chassis and mast channels ensure stability and durability, making the ES16-RS suitable for demanding stacking operations up to 5.5 meters.
Operator-focused comfort
The foldable platform with reduced vibration and protection arms improves operator comfort during long shifts, while electronic steering reduces fatigue in tight spaces.
Advanced safety functions
Features like automatic low-speed mode above 720 mm, anti-rolling back brake, and dual hydraulic monitoring provide enhanced safety during daily operation.
Flexible power and options
Equipped with a standard 24V/210Ah battery, the ES16-RS also supports Li-ion options (150Ah or 205Ah). Optional add-ons include remote monitoring, proportional lift, overhead guard, and side support systems.
Request a quote
Specifications for the ES16-RS
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | ES16-RS |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1600 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 671 mm |
| Wheelbase | 1375 mm |
| Service weight | 1240 kg |
| Axle loading, laden front/rear | 960/1880 kg |
| Axle loading, unladen front/rear | 860/380 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф230×75mm |
| Tyre size, rear | Ф85×70mm |
| Additional wheels (castor wheels) | Ф130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x+1/4 |
| Tread width, front | 574 mm |
| Tread width, rear | 380/495 mm |
| Max lift height | 3000 mm |
| Height, mast lowered | 2020 mm |
| Lift | ["2912"] mm |
| Height, mast extended | 3465 mm |
| Height drawbar in driving position min./max. | 1150/1480 mm |
| Height, lowered | 90 mm |
| Overall length | 2035 mm |
| Length to face of forks | 885 mm |
| Overall width | 850 mm |
| Fork dimensions | 60×190×1150 mm |
| Fork carriage width | 800 mm |
| Distance between fork-arms | 570/685 mm |
| Ground clearance, centre of wheelbase | 28 mm |
| Aisle width for pallets 1000×1200 crossways | 2605/2965 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2575/2935 mm |
| Turning radius | 1730/2090 mm |
| Travel speed, laden/unladen | 5.5/6.0 km/h |
| Lift speed, laden/unladen | 0.13/0.16 m/s |
| Lowering speed, laden/unladen | 0.30/0.22 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 3.0 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 210 Ah |
| Battery type | Lead Acid/Li-ion |
| Battery weight | 200 kg |
| Energy consumption according to DIN EN 16796 | 0.942 ¹⁾kWh/h |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What is the load capacity of the ES16-RS?
The ES16-RS offers a load capacity of 1,600 kg with a 600 mm load center, delivering strong lifting performance for medium-duty stacking and material handling tasks. Its high-strength chassis and durable hydraulic system ensure reliable operation even in demanding warehouse environments.
What is the maximum lift height and mast configuration?
The ES16-RS provides a standard lift height of 3,000 mm, with optional masts extending up to 5,500 mm. Customers can choose between 2-stage and 3-stage free-lift mast options to suit different warehouse applications. The two-speed lowering function offers enhanced stability and precision when stacking goods at height.
What type of battery powers the ES16-RS?
This model is powered by a 24V battery system, available in multiple capacities—210Ah, 280Ah, or 345Ah lead-acid, and optional 150Ah or 205Ah lithium-ion configurations. The Li-ion option enables opportunity charging, reduces maintenance needs, and ensures consistent power for multi-shift operations.
How maneuverable is the ES16-RS in narrow aisles?
With a turning radius as compact as 1,730 mm, the ES16-RS offers excellent maneuverability in tight warehouse spaces. The side-positioned drive system and electronic steering provide smooth control, while the optional foldable platform and protection arms enhance operator comfort during longer-distance travel.
What safety and operator comfort features are included?
The ES16-RS prioritizes safety and ease of operation with features such as an electromagnetic brake, dual monitoring power steering system, and anti-rollback protection. For operator comfort, it includes electric power steering, ergonomic controls, and a foldable platform that minimizes vibration. Together, these elements ensure stability, precision, and reduced operator fatigue during every shift-
