2000 kg
EPT20-20WA
Heavy-Duty Pallet Truck 2.0T
Contact Us
About the EPT20-20WA
Built for heavy-duty transport, the EPT20-20WA combines a 2000 kg load capacity with compact dimensions and a 1600 mm turning radius. Featuring a powerful AC traction motor with gearbox and long ergonomic tiller, it ensures safe, efficient, and comfortable handling even in confined aisles.
Get a QuoteDatasheet
Product Application

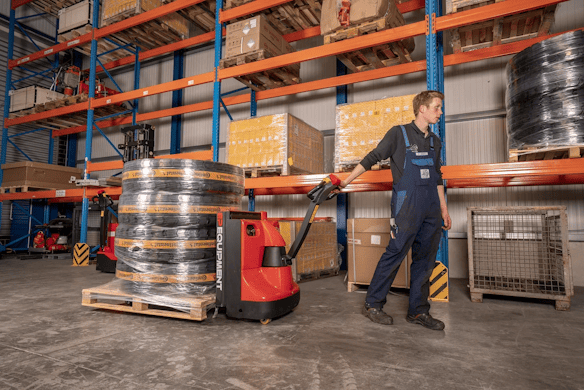

The EPT20-20WA is suited for high-intensity short-distance pallet transport, such as loading docks, distribution centers, and warehouse transfers. Its curved chassis design prevents operator injury, while automatic speed reduction and creep speed mode enhance precision and safety in narrow aisles.
Features
Powerful AC drive system
The innovative vertical AC traction motor with gearbox delivers strong performance, precise control, and low maintenance. Combined with a durable hydraulic unit and high-quality components, it ensures reliable uptime even in heavy-duty operations.
Enhanced safety features
With a curved chassis to reduce injury risks, anti-rollback brake, and emergency stop functions, the EPT20-20WA prioritizes operator safety. The belly button protection and automatic speed reduction when the tiller is upright further enhance safe operation in confined areas.
Ergonomic and precise operation
The long ergonomic tiller reduces steering effort and improves maneuverability. Operators benefit from creep speed mode for precise control in narrow spaces, and the wide tiller rotation range ensures flexible handling across applications.
Easy maintenance and flexibility
Key components are easily accessible for inspection and replacement, while the hourmeter and battery indicator help monitor performance. Optional cold storage configuration, weighing system, and telematics allow the truck to be tailored for specific industries and environments.
Request a quote
Specifications for the EPT20-20WA
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EPT20-20WA |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 2000 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 916/982 mm |
| Wheelbase | 1418 mm |
| Service weight | 530 kg |
| Axle loading, laden front/rear | 950/1580 kg |
| Axle loading, unladen front/rear | 425/105 kg |
| Tyres | Polyurethane |
| Tyre size, front | Ф230x75mm |
| Tyre size, rear | Ф85x70mm |
| Additional wheels (castor wheels) | Ф85x48mm |
| Wheels, number front/rear (x=drive wheels) | 1x+2/4 |
| Tread width, front | 498 mm |
| Tread width, rear | 515 mm |
| Max lift height | 120 mm |
| Lift | ["120"] mm |
| Height drawbar in driving position min./max. | 715/1200 mm |
| Overall length | 1769 mm |
| Overall width | 710 mm |
| Fork dimensions | 55x170x1150 mm |
| Distance between fork-arms | 685 mm |
| Ground clearance, centre of wheelbase | 30 mm |
| Aisle width for pallets 1000×1200 crossways | 2400 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2255 mm |
| Turning radius | 1600 mm |
| Travel speed, laden/unladen | 5/5.5 km/h |
| Lift speed, laden/unladen | 0.051/0.060 m/s |
| Lowering speed, laden/unladen | 0.032/0.039 m/s |
| Max. gradeability, laden/unladen | 8/16 % |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 0.84 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 210|150 Ah |
| Battery type | Lead Acid/Li-ion |
| Battery weight | 195/50 kg |
| Energy consumption according to DIN EN 16796 | 0.297kWh/h |
| Turnover output according to VDI 2198 | 84 |
| Turnover efficiency according to VDI 2198 | 177.59 |
| Type of drive unit | AC |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What is the load capacity of the EPT20-20WA?
The EPT20-20WA supports a maximum load of 2000 kg, making it suitable for heavy-duty short-distance transport in warehouses and logistics hubs.
What type of motor does the EPT20-20WA use?
It is powered by a vertical AC traction motor with gearbox, providing powerful performance, precise control, and lower maintenance compared to DC motors.
How does the EPT20-20WA improve operator safety?
The truck features a curved chassis to reduce injury risks, an anti-rollback brake, emergency disconnect, belly button protection, and automatic speed reduction when the tiller is upright.
Is the EPT20-20WA suitable for confined spaces?
Yes. With a turning radius of 1600 mm and creep speed mode, it is highly maneuverable in narrow aisles and confined warehouse environments.
Are there optional configurations available?
Yes. Customers can choose options such as a cold storage version, weighing system, and telematics integration, adapting the truck to specialized applications.
