1500 Kg
EPL154
Electric Pallet Truck 1.5T
Contact Us

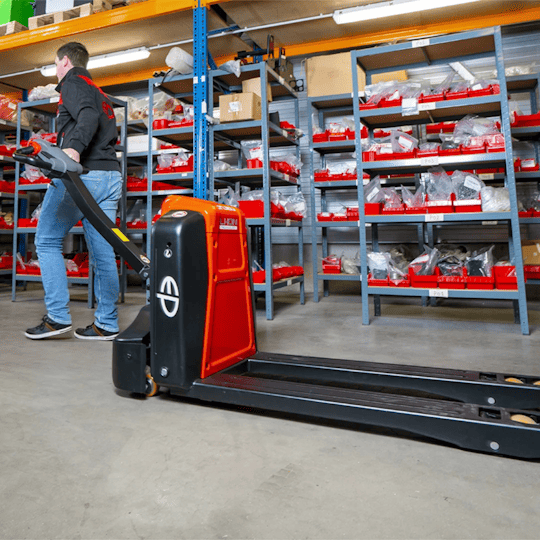

About the EPL154
The EPL154 combines compact dimensions with enhanced stability, thanks to its industrial floating stabilizing wheels. With a 1.5-ton load capacity, a 24V/30Ah removable Li-ion battery, and integrated fast charger, it provides a reliable and convenient solution for daily handling tasks. The battery’s protective metal cover and plug-in design ensure both safety and ease of use.
Get a QuoteDatasheet
Product Application
The EPL154 is ideal for warehouses, retail, and logistics centers requiring stability and maneuverability in narrow spaces. Its small chassis (400 mm fork face length) and lightweight design (160 kg) make it perfect for confined environments, while the stabilizing wheels allow safe load handling even on uneven surfaces. With optional fork dimensions and charger configurations, the EPL154 adapts to various working conditions.
Features
Industrial stabilizing wheels
Equipped with floating stabilizing wheels as standard, the EPL154 provides maximum stability and smooth passability. This feature enhances operator confidence, especially when handling loads on slightly uneven floors.
Removable Li-ion battery
A 24V/30Ah Li-ion plug-in battery with integrated BMS powers the truck. Its removable design with metal protection cover ensures safety, fast swapping, and reliable performance throughout the shift.
Compact and lightweight
With just 400 mm fork face length and a service weight of 160 kg, the EPL154 is easy to maneuver in narrow aisles and confined spaces, while still handling up to 1.5 tons of load.
Reliable drive system
The EPL154 adopts the proven drive system from the EPT20-15ET, delivering consistent power and durability. It also ensures gradeability up to 10% even with a 1000 kg load.
Request a quote
Specifications for the EPL154
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EPL154 |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 940 (875) mm |
| Wheelbase | 1200 (1135) mm |
| Service weight | 160 kg |
| Axle loading, laden front/rear | 555/1105 kg |
| Axle loading, unladen front/rear | 130/30 kg |
| Tyres | Polyurethane |
| Tyre size, front | 210x70mm |
| Tyre size, rear | 80x60mm |
| Wheels, number front/rear (x=drive wheels) | 1x 2/4(1x 2/2) |
| Tread width, front | 450 mm |
| Tread width, rear | 390 (535) mm |
| Max lift height | 115 mm |
| Lift | ["115"] mm |
| Overall length | 1550 mm |
| Length to face of forks | 400 mm |
| Overall width | 610 (695) mm |
| Fork dimensions | 50x 150x 1150 mm |
| Aisle width for pallets 1000×1200 crossways | 2094 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2146 mm |
| Turning radius | 1330 mm |
| Travel speed, laden/unladen | 4.5 / 5 km/h |
| Lift speed, laden/unladen | 0.028/0.031 m/s |
| Lowering speed, laden/unladen | 0.068/0.043 m/s |
| Max. gradeability, laden/unladen | 6/16 % |
| Service brake | Electromagnetic |
| Drive motor rating S2 60 min | 0.75 kW |
| Lift motor rating at S3 15% | 0.8 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 30 Ah |
| Battery type | Li-Ion |
| Battery weight | 10 kg |
| Type of drive unit | DC |
| Steering design | Mechanical |
| Sound pressure level at the driver's seat | <74 dB(A) |
FAQs
What is the maximum load capacity of the EPL154?
The EPL154 has a load capacity of 1.5 tons, making it suitable for standard warehouse, retail, and logistics operations.
What makes the EPL154 more stable than other pallet trucks?
It comes equipped with industrial floating stabilizing wheels as standard, which improve balance, ensure smooth passage over uneven floors, and provide safer load handling.
What type of battery does the EPL154 use?
The truck is powered by a 24V/30Ah removable Li-ion battery with an integrated BMS. Its plug-in design and protective metal cover make it both safe and easy to swap.
How compact is the EPL154?
With a fork face length of only 400 mm and a service weight of 160 kg, the EPL154 is highly maneuverable in narrow aisles and confined spaces, while still handling heavy-duty tasks.
Are there customization options for the EPL154?
Yes. The EPL154 offers optional fork sizes, charger configurations, and wheel types, allowing businesses to tailor the truck to specific pallet standards and operational needs.
