3000 kg
EFL303
Li-ion Counterbalance Forklift 3.0T
Contact Us
About the EFL303

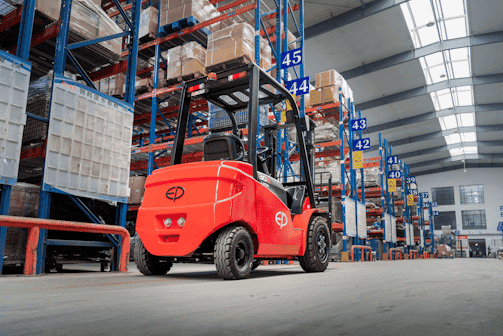

The EFL303 is a 3.0-ton lithium-ion counterbalance forklift that blends IC-grade power with electric intelligence. Featuring a robust 80V/205Ah system, high ground clearance, and superior stability, it’s engineered to handle medium-to-heavy loads in all environments with zero emissions and reduced total cost of ownership.
Get a QuoteDatasheet
Product Application
Designed for warehouses, manufacturing sites, and logistics hubs, the EFL303 excels in applications requiring both indoor maneuverability and outdoor durability. From pallet handling to heavy material transport, it performs consistently in diverse conditions, offering reliability and operator comfort in every shift.
Features
Higher performance for productivity boost
Max travel speed 19/20km/h to cover diverse intralogistics application needs.
Max battery capacity 80V/560Ah and max charging current 200A for longer uptime and fast charging.
Max gradeability 22/28% to deliver better stability on ramps.
Max lifting speed 0.48/0.54m/s for greater efficiency.
The truck structure integrates aesthetics and practical design
Both practicality and beauty are reflected in the design of the new EFL series. It inherits the robust chassis of the T8 IC truck series and features a more streamlined and compact counterweight, to better fit in confined space. Plus, the rain-proofed charging port protects the port from water splash and ensures charging safety.
Lithium technology to replace internal combustion engine
The lithium technology has proven itself as an emission-free and maintenance-free alternative to diesel. The new generation of EFL series handles loads with consistently high performance due to opportunity charging even for the most demanding applications.
Multi-functions for safe operation and easy fleet management
The new EFL series is equipped with a variety of functional configurations, such as OPS system, Telematics and card system, which not only takes security as priority but als
Ergonomic improvements for comfortable operation
The workspace of the new EFL series is more spacious with a simplified panel and a comfortable pedal. The series features a new LED display that clearly shows speed, working hours, battery status ,milage and parking status so the operator can easily grapse the truck conditions just with a glanc
Outdoor behavior with high-visibility closed roof and cabin options
The bolted overhead guard is fitted as standard with a new closed roof made of tempered glass and flat high-strength steel bars, offering the highest visibility in the category. It enables safe load handling at all heights and increases productivity by increasing the number of pallet movements. Outdoor performance can be enhanced with cabin options such as front windshield, semi-cab, full cabin, heater and A/C. For added flexibility, the front windshield and semi cabin can be offered in a retrofit kit for easy installation by dealers.
Request a quote
Specifications for the EFL303
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EFL303 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 3000 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 481 mm |
| Wheelbase | 1740 mm |
| Service weight | 4280 kg |
| Axle loading, laden front/rear | 6595/685 kg |
| Axle loading, unladen front/rear | 1900/2380 kg |
| Tyres | Solidrubber |
| Tyre size, front | 28x9-15mm |
| Tyre size, rear | 200/50-10mm |
| Wheels, number front/rear (x=drive wheels) | 2X-2 |
| Tread width, front | 1010 mm |
| Tread width, rear | 955 mm |
| Max lift height | 6000 mm |
| Tilt of mast/fork carriage forward/backward | 6/10 ° |
| Height, mast lowered | 2070 mm |
| Free lift | 135 mm |
| Lift | ["3000"] mm |
| Height, mast extended | 4095 mm |
| Height of overhead guard (cabin) | 2180 mm |
| Seat height relating to SIP/stand height | 1110 mm |
| Coupling height | 345 mm |
| Overall length | 3610 mm |
| Length to face of forks | 2540 mm |
| Overall width | 1210 mm |
| Fork dimensions | 45X122X1070 mm |
| Fork carriage ISO 2328, class/type A, B | 3A |
| Fork carriage width | 1100 mm |
| Ground clearance, laden, below mast | 130 mm |
| Ground clearance, centre of wheelbase | 185 mm |
| Aisle width for pallets 1000×1200 crossways | 4028 mm |
| Aisle width for pallets 800 × 1200 lengthways | 4228 mm |
| Turning radius | 2347 mm |
| Travel speed, laden/unladen | 11/12 km/h |
| Lift speed, laden/unladen | 0.29/0.36 m/s |
| Lowering speed, laden/unladen | 0.43/0.44 m/s |
| Max. gradeability, laden/unladen | 15/15 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 10 kW |
| Lift motor rating at S3 15% | 16 kW |
| Battery voltage | 80 V |
| Battery nominal capacity K5 | 205 Ah |
| Battery type | Li-Ion |
| Battery weight | 160 kg |
| Energy consumption according to DIN EN 16796 | 7.15kWh/h |
| Turnover output according to VDI 2198 | 180 |
| Turnover efficiency according to VDI 2198 | 28.57 |
| Type of drive unit | AC |
| Operating pressure for attachments | 180bar |
| Oil volume for attachments | 35ℓ/min |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | <74 dB(A) |
FAQs
What are the main advantages of the EFL 3 Series compared to diesel forklifts?
The EFL 3 Series combines the rugged power of IC forklifts with the sustainability and efficiency of Li-ion technology. It delivers comparable performance and endurance without fuel costs, noise, or emissions, making it ideal for businesses transitioning to greener operations.
What battery options are available for the EFL 3 Series?
The series is powered by an 80V Li-ion battery system ranging from 205Ah to 560Ah. These high-capacity batteries offer long runtime, zero maintenance, and fast charging up to 200A, ensuring continuous productivity in multi-shift operations.
Can the EFL 3 Series be used outdoors?
Absolutely. With its IC-style chassis, large solid rubber tires, and high ground clearance, the EFL 3 Series handles uneven terrain and outdoor conditions with ease. Optional fully enclosed cabins with heating or AC systems make it suitable for year-round outdoor use.
What features improve operator comfort and productivity?
The EFL 3 Series offers an ergonomic workspace with adjustable steering, a suspension seat, and a clear LED display for essential information. Optional hydraulic joystick controls provide precise handling, while excellent visibility and low noise levels reduce operator fatigue.
How does the EFL 3 Series enhance safety and fleet management?How does the EFL 3 Series enhance safety and fleet management?
Safety is reinforced through the OPS operator presence system, card access start, and optional telematics integration. These systems enable real-time tracking, usage monitoring, and performance optimization for efficient fleet management.
