2000 kg
EFL203
4-Wheel Li-ion Counterbalance Forklift 2.0T
Contact Us
About the EFL203

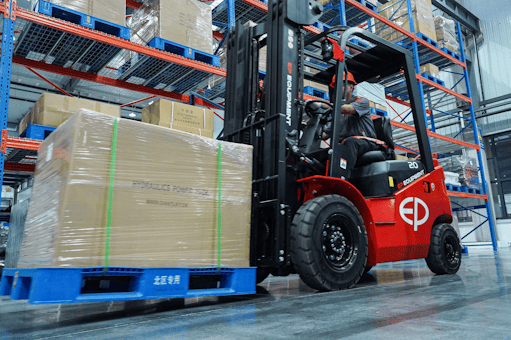

The EFL203(P) is an addition to the iconic EFL Series electric forklifts, offering a 2-ton load capacity with significant performance and battery upgrades. This model combines the strength of IC forklifts with the eco-friendliness & efficiency of lithium technology. Available in two versions, standard and Premium, it caters to diverse operational needs. The EFL203(P) also features an expanded battery capacity option of 460Ah for extended operational uptime and boosted efficiency.
Get a QuoteDatasheet
Product Application
Indoor & Outdoor: With a robust design, EFL203(P) electric forklift is ideal for both indoor and outdoor applications.
All Weather & Terrian: Big tyres, high ground clearance, and water-resistant design make it an all-weather solution for rough terrains.
Long Runtime Operations: Suitable for demanding scenarios requiring nearly 24/7 operation with Li-ion’s opportunity charging and large battery capacity options.
Features
Dual charging system for maximum flexibility
The EFL203(P) includes both an integrated single-phase charger and an external charging port, allowing operators to charge anywhere, anytime. Combined with optional 80V/460Ah Li-ion batteries, this system supports long runtime and efficient multi-shift use.
Two performance versions to fit every need
Available in standard and premium versions, the EFL203(P) meets different operational demands. The premium version achieves travel speeds up to 20 km/h, lift speeds of 0.54 m/s, and gradeability of 28%, ensuring fast and efficient performance in intensive applications
High ground clearance and outdoor durability
Equipped with large pneumatic tires and 150 mm ground clearance, the EFL203(P) easily handles uneven terrain. Its waterproof construction allows reliable operation even in rain or damp environments, making it suitable for mixed indoor–outdoor logistics
Modern design and improved visibility
The EFL203(P) adopts a streamlined counterweight and a newly engineered mast layout for improved sightlines. The bolted overhead guard and optimized hose positioning ensure safer and more accurate load handling, while the large LED display and bright LED lights enhance visibility in all conditions
Request a quote
Specifications for the EFL203
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | EFL203 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 2000 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 495 mm |
| Wheelbase | 1540 mm |
| Service weight | 3540 kg |
| Axle loading, laden front/rear | 4930/610 kg |
| Axle loading, unladen front/rear | 1640/1900 kg |
| Tyres | Pneumatic |
| Tyre size, front | 7.00-12-12PRmm |
| Tyre size, rear | 18X7-8-14PRmm |
| Wheels, number front/rear (x=drive wheels) | 2x/ 2 |
| Tread width, front | 975 mm |
| Tread width, rear | 955 mm |
| Max lift height | 6000 mm |
| Tilt of mast/fork carriage forward/backward | 6/ 10 ° |
| Height, mast lowered | 2090 mm |
| Free lift | 195 mm |
| Lift | ["3000"] mm |
| Height, mast extended | 4025 mm |
| Height of overhead guard (cabin) | 2165 mm |
| Seat height relating to SIP/stand height | 1095 mm |
| Coupling height | 310 mm |
| Overall length | 3426 mm |
| Length to face of forks | 2356 mm |
| Overall width | 1154 mm |
| Fork dimensions | 40×122×1070 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 1040 mm |
| Ground clearance, laden, below mast | 115 mm |
| Ground clearance, centre of wheelbase | 150 mm |
| Aisle width for pallets 1000×1200 crossways | 3805 mm |
| Aisle width for pallets 800 × 1200 lengthways | 4005 mm |
| Turning radius | 2110 mm |
| Travel speed, laden/unladen | 14/15 km/h |
| Lift speed, laden/unladen | 0.29/0.36 m/s |
| Lowering speed, laden/unladen | 0.54/0.56 m/s |
| Max. gradeability, laden/unladen | 15/20 % |
| Service brake | Hydraulic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 10 kW |
| Lift motor rating at S3 15% | 16 kW |
| Battery voltage | 80 V |
| Battery nominal capacity K5 | 230 Ah |
| Battery type | Li-Ion |
| Battery weight | 181 kg |
| Energy consumption according to DIN EN 16796 | 6.2kWh/h |
| Turnover output according to VDI 2198 | 116 |
| Turnover efficiency according to VDI 2198 | 22.18 |
| Type of drive unit | PMSM |
| Operating pressure for attachments | 180bar |
| Oil volume for attachments | 35ℓ/min |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | <74 dB(A) |
FAQs
What are the main differences between the standard and premium versions of the EFL203(P)?
The EFL203(P) comes in two versions to meet different operational needs. The standard model is ideal for typical indoor/outdoor logistics, while the Premium version offers enhanced performance with a top speed of 20 km/h, faster lifting up to 0.54 m/s, and improved gradeability up to 28%
What type of battery does the EFL203(P) use?
It is powered by EP’s advanced 80V Li-ion battery system, available in 230Ah or optional 460Ah capacity. The Li-ion technology ensures maintenance-free operation, rapid charging, and consistent power output even in demanding multi-shift applications.
How does the dual charging system work?
The EFL203(P) is equipped with both a built-in single-phase charger for Plug&Play convenience and an external charger port for faster, high-capacity charging. This allows operators to charge anywhere—either during short breaks or overnight—maximizing uptime and flexibility.
Can the EFL203(P) be used outdoors?
Yes. With a ground clearance of 150 mm, large pneumatic tires, and waterproof design, the EFL203(P) performs reliably on uneven or wet surfaces. Its robust chassis and sealed electrical system make it suitable for all-weather operation in outdoor logistics yards or loading zones
What comfort and safety features does the EFL203(P) offer?
The forklift is designed for operator comfort with a spacious cabin, adjustable steering wheel, and suspension seat with armrest. Safety and visibility are enhanced by a redesigned mast with optimized hose layout, bright LED front lights, and a large multi-function display
