1500 Kg
CTL15
VNA (Very Narrow Aisle) forklift truck
Contact Us
About the CTL15

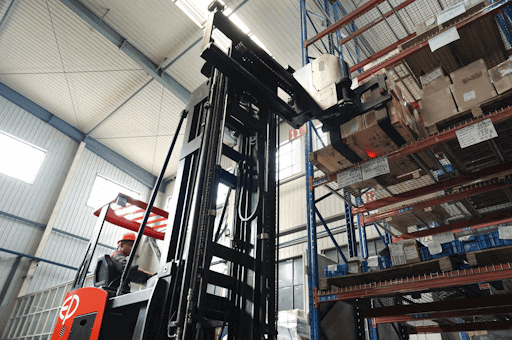

The CTL15 from EP Equipment is a man-down, seated Very Narrow Aisle (VNA) truck designed for maximum storage efficiency and operator control. With a 1500 kg capacity, a 13 m lift height, and a compact 1740 mm working aisle width, it optimises every square metre of your warehouse. Its 48 V/560 Ah Li-ion battery ensures long uptime and zero maintenance, while ergonomic design and advanced handling systems deliver unmatched performance in high-density environments.
Get a QuoteDatasheet
Product Application
Engineered for warehouses, distribution centres, and manufacturing sites with limited space and high stacking requirements, the CTL15 excels in operations demanding precision and speed. It’s perfect for high-bay storage, narrow-aisle pallet handling, and automated or semi-automated racking systems. With rail-guided travel and an ergonomic side-seated layout, it ensures safe, comfortable, and accurate load handling even in the most confined warehouse environments.
Features
Maximised warehouse efficiency
With a minimum aisle width of just 1740 mm, the CTL15 allows facilities to increase racking density and storage capacity. Its trilateral head with sideshifter delivers 180° multi-directional load handling, maximising throughput while minimising travelling space requirements.
Precision control systems
Operators can lift, lower, and position loads with absolute accuracy thanks to a proportional lift system and a programmable height preselector. A built-in camera and monitor enhance visibility at height, ensuring safe, confident load handling at every level.
Lithium-ion power advantage
The 48 V/560 Ah Li-ion battery provides long operating time with fast opportunity charging and no maintenance. Paired with a 200 A external charger, it guarantees consistent uptime and cost-effective operation across multiple shifts.
Ergonomic and safe design
A side-seated configuration gives operators excellent visibility and comfort during extended operation. Automatic speed reduction based on mast height ensures safety, while intuitive joystick controls enable smooth, fatigue-free manoeuvring.
Request a quote
Specifications for the CTL15
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | CTL15 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 1500 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 213 mm |
| Wheelbase | 1900 mm |
| Service weight | 7020 kg |
| Axle loading, laden front/rear | 2000/6760 kg |
| Axle loading, unladen front/rear | 2780/4380 kg |
| Tyre size, front | ₲406×170mm |
| Tyre size, rear | ₲380×192mm |
| Wheels, number front/rear (x=drive wheels) | 1x, 2 |
| Max lift height | 13000 mm |
| Height, mast lowered | 3460 mm |
| Height, mast extended | 7695 mm |
| Height of overhead guard (cabin) | 2346 mm |
| Overall length | 3048 mm |
| Overall width | 1270/1500 mm |
| Fork dimensions | 50/120/1200 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 860 mm |
| Ground clearance, laden, below mast | 80 mm |
| Ground clearance, centre of wheelbase | 80 mm |
| Aisle width for pallets 1000×1200 crossways | 1740 mm |
| Aisle width for pallets 800 × 1200 lengthways | 1740 mm |
| Turning radius | 2185 mm |
| Travel speed, laden/unladen | 10/10.5 km/h |
| Lift speed, laden/unladen | 0.4/0.47 m/s |
| Lowering speed, laden/unladen | 0.55/0.45 m/s |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Lift motor rating at S3 15% | 20 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 560 Ah |
| Battery weight | 250 kg |
| Type of drive unit | AC |
| Sound pressure level at the driver's seat | 75 dB(A) |
| Charger output current | 200 A |
FAQs
What is the CTL15's load capacity?
The CTL15 supports a rated capacity of 1500 kg at a 600 mm load centre, suitable for a wide range of palletised goods.
How high can it lift?
The CTL15 offers a maximum lift height of up to 13,000 mm, allowing efficient use of vertical storage in high-bay warehouses.
What type of battery does it use?
It is equipped with a 48 V/560 Ah lithium-ion battery, which offers fast charging, no maintenance, and opportunity charging capability for continuous operations.
What aisle width is required for operation?
The truck can operate in working aisles as narrow as 1740 mm, making it ideal for dense storage facilities and VNA racking systems.
What safety and comfort features are available?
The CTL15 includes automatic speed reduction at high mast positions, ergonomic side-seated operation, proportional lift control, and a camera system for precise load placement. These ensure both operator comfort and operational safety throughout extended shifts.
