1200 kg
CQE12R
Electric Reach Truck 1.2T
Contact Us

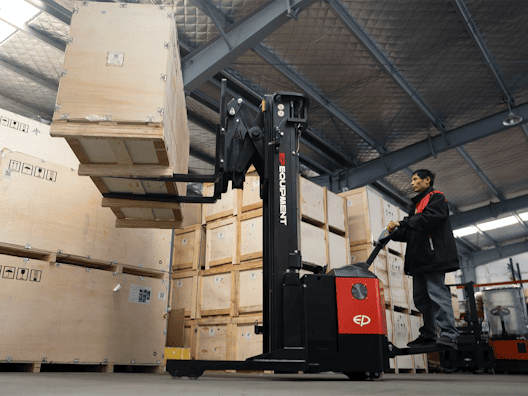

About the CQE12R
The CQE12R/15R series delivers reliable stacking with lift heights up to 5.5 meters and load capacities of 1.2 or 1.5 tons. Equipped with an AC traction motor, electronic power steering (EPS), and proportional hydraulic controls, it ensures smooth, precise, and efficient operations in tight warehouse spaces.
Get a QuoteDatasheet
Product Application
The CQE12R/15R is the ideal solution for logistics hubs, warehouses, and retail distribution centers with space constraints. Its narrow chassis (850–1018 mm width) and tight turning radius (1597–1697 mm) make it effective in confined aisles, while the reach mast system enables safe pallet stacking at high levels. With polyurethane wheels, optional cold storage configuration, and side-shift attachments, it adapts to various industries requiring flexible, reliable material handling.
Features
Compact design for narrow aisles
With overall widths starting at just 850 mm and turning radii of 1597–1697 mm, the CQE12R/15R is engineered for efficient operations in tight warehouse environments and narrow aisles.
Stable and safe lifting
Capable of reaching lift heights up to 5.5 m, the CQE12R/15R uses a reinforced mast and proportional hydraulics to maintain stability, precision, and safety even at maximum stacking heights.
Reliable Li-ion and lead-acid battery options
Equipped with a 24V/210–280Ah battery as standard, the truck also offers optional Li-ion packs (205Ah) with external 24V/100A chargers, supporting quick, maintenance-free charging.
Operator comfort and safety features
Operators benefit from EPS steering, a foldable platform, ergonomic tiller head, and anti-rollback braking. Multiple safety systems, including hydraulic drop protection and emergency stop, ensure smooth and secure operation.
Request a quote
Specifications for the CQE12R
| Name | Value |
|---|---|
| Manufacturer | CQE12R |
| Model designation | CQE12R |
| Drive | Electric |
| Operator type | Pedestrian |
| Rated capacity | 1200 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 346 mm |
| Wheelbase | 1310 mm |
| Service weight | 1745 kg |
| Axle loading, laden front/rear | 454/2510 kg |
| Axle loading, unladen front/rear | 1052/782 kg |
| Tyres | Polyurethane |
| Tyre size, front | Φ230×75mm |
| Tyre size, rear | Φ210×85mm |
| Additional wheels (castor wheels) | Φ130×55mm |
| Wheels, number front/rear (x=drive wheels) | 1x+2/2 |
| Tread width, front | 634 mm |
| Tread width, rear | 900 mm |
| Max lift height | 5500 mm |
| Tilt of mast/fork carriage forward/backward | 2/4 ° |
| Height, mast lowered | 2065 mm |
| Lift | ["3000"] mm |
| Height, mast extended | 4000 mm |
| Seat height relating to SIP/stand height | 150 mm |
| Height of wheel arms | 235mm |
| Stand height, elevated | 4000 |
| Height, lowered | 2065 mm |
| Overall length | 2312 mm |
| Length to face of forks | 1242 mm |
| Overall width | 850/988 mm |
| Fork dimensions | 40/100/1070 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 956 mm |
| Distance between wheel arms/loading surfaces | 698 |
| Ground clearance, laden, below mast | 75 mm |
| Ground clearance, centre of wheelbase | 70 mm |
| Aisle width for pallets 1000×1200 crossways | 2684 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2739 mm |
| Turning radius | 1597 mm |
| Travel speed, laden/unladen | 5.5/6.0 km/h |
| Lift speed, laden/unladen | 0.12/0.15 m/s |
| Lowering speed, laden/unladen | 0.18/0.12 m/s |
| Max. gradeability, laden/unladen | 6/10 % |
| Service brake | Electromagnetic |
| Parking brake | Mechanical |
| Drive motor rating S2 60 min | 1.6 kW |
| Lift motor rating at S3 15% | 1.6 kW |
| Battery voltage | 24 V |
| Battery nominal capacity K5 | 210 Ah |
| Battery type | Lead Acid/Li-ion |
| Battery weight | 190 kg |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 74 dB(A) |
| Charger output current | 30 A |
FAQs
What are the load capacities of the CQE12R and CQE15R?
The CQE12R has a load capacity of 1200 kg, while the CQE15R supports up to 1500 kg, making the series versatile for medium-duty stacking tasks
How high can these models lift?
Both versions offer mast options with lift heights up to 5.5 meters, ensuring safe stacking in medium- to high-level racking systems.
What battery options are available?
They come standard with 24V lead-acid batteries (210–280Ah) and can be optionally equipped with Li-ion batteries (205Ah) for opportunity charging and reduced maintenance.
Are the CQE12R/15R suitable for narrow aisle operations?
Yes. With chassis widths of 850–1018 mm and turning radii between 1597 and 1697 mm, they are designed specifically for narrow aisles and space-constrained warehouses.
What safety features are included?
The series is equipped with hydraulic drop protection, anti-rollback braking, emergency stop, and proportional hydraulics for precise and secure load handling.
