1600 kg
CQD16-PRO
Li-ion 80 V reach truck 1.6 t
Contact Us
About the CQD16-PRO
The CQD14/16L3 series combines compact dimensions with powerful 80V Li-ion technology, delivering lifting heights up to 9.65 metres while ensuring high stability and safety. Designed for narrow aisles with a working width of only 2701 mm, it offers proportional lifting, precise steering, and a spacious operator cab with excellent visibility.
Get a QuoteDatasheet
Product Application

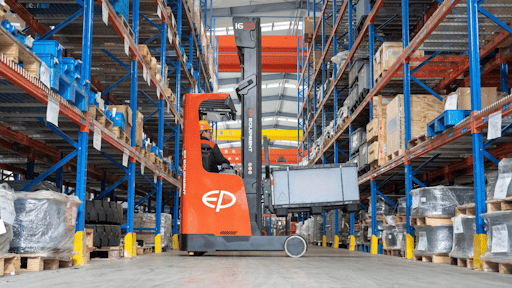

The CQD14/16L3 series is ideal for high-density warehouses, logistics hubs, and distribution centres. Its optimised mast provides stability at full lift height, while proportional lifting ensures gentle and accurate handling of heavy or fragile goods. With a compact chassis and tight turning radius, it is well-suited for narrow aisles and space-restricted environments. Optional features such as cold storage configuration, safety lamps, and telematics make it adaptable to diverse industry needs.
Features
Compact and agile design
With a working aisle width of just 2701 mm, the CQD14/16L3 is perfectly suited for narrow aisles and high-density racking. Its small turning radius adds agility, making it highly competitive in space-constrained warehouses.
Enhanced mast stability
The optimised mast reaches up to 8 m (CQD14L3) and 9.65 m (CQD16L3), ensuring stability even under heavy loads. High residual capacity at full height guarantees consistent performance in demanding operations.
Efficient Li-ion power system
Powered by an 80V Li-ion battery (150–280Ah), the series supports fast lifting and lowering speeds and offers convenient external charging. The Li-ion system enables opportunity charging and eliminates battery maintenance.
Operator-focused ergonomics
A spacious cab with unobstructed visibility, electronic steering with damping, and fingertip or joystick controls enhance safety and comfort. Features like proportional lifting and a full-colour display provide precise handling and ease of use.
Request a quote
Specifications for the CQD16-PRO
| Name | Value |
|---|---|
| Manufacturer | CQD16 PRO |
| Model designation | CQD16-PRO |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 1600 kg |
| Load centre distance | 600 mm |
| Load distance, centre of drive axle to fork | 390 mm |
| Wheelbase | 1415 mm |
| Service weight | 4075 kg |
| Axle loading, laden front/rear | 1045/4775 kg |
| Axle loading, unladen front/rear | 2580/1500 kg |
| Tyres | Polyurethane |
| Tyre size, front | Φ343×140mm |
| Tyre size, rear | Φ285×100mm |
| Additional wheels (castor wheels) | -mm |
| Wheels, number front/rear (x=drive wheels) | 1x/2 |
| Tread width, front | - mm |
| Tread width, rear | 1168 mm |
| Max lift height | 9655 mm |
| Tilt of mast/fork carriage forward/backward | 2/4 ° |
| Height, mast lowered | 3930 mm |
| Free lift | 2877 mm |
| Lift | ["9655"] mm |
| Height, mast extended | 10720 mm |
| Height of overhead guard (cabin) | 2200 mm |
| Seat height relating to SIP/stand height | 1000 mm |
| Height of wheel arms | 308mm |
| Overall length | 2465 mm |
| Length to face of forks | 1265 mm |
| Overall width | 1250/1270 mm |
| Fork dimensions | 40/100/1150 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 990 mm |
| Distance between wheel arms/loading surfaces | 917 |
| Ground clearance, laden, below mast | 75 mm |
| Ground clearance, centre of wheelbase | 70 mm |
| Aisle width for pallets 1000×1200 crossways | 2715 mm |
| Aisle width for pallets 800 × 1200 lengthways | 2760 mm |
| Turning radius | 1680 mm |
| Travel speed, laden/unladen | 11/11 km/h |
| Lift speed, laden/unladen | 0.42/0.6 m/s |
| Lowering speed, laden/unladen | 0.55/0.5 m/s |
| Max. gradeability, laden/unladen | 10/15 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 8 kW |
| Lift motor rating at S3 15% | 22 kW |
| Battery voltage | 80 V |
| Battery nominal capacity K5 | 205 Ah |
| Battery type | Li-Ion |
| Battery weight | 180 kg |
| Type of drive unit | AC |
| Steering design | Electronic |
| Sound pressure level at the driver's seat | 70 dB(A) |
| Charger output current | 100 A |
FAQs
What is the load capacity of the CQD14/16L3 series?
The series includes models with 1.4-tonne (CQD14L3) and 1.6-tonne (CQD16L3) load capacities, suitable for a wide range of warehouse applications.
How high can the CQD14/16L3 reach?
The mast can lift up to 8 metres (CQD14L3) or 9.65 metres (CQD16L3), maintaining excellent residual capacity and stability at height.
What type of battery powers the CQD14/16L3?
Both models are powered by an 80V Li-ion battery with capacities ranging from 150Ah to 280Ah, supporting opportunity charging and eliminating the need for maintenance.
Is the CQD14/16L3 suitable for narrow aisles?
Yes. With a working aisle width of just 2701 mm and compact chassis design, the trucks are optimised for high-density warehouses and space-restricted environments.
What features improve operator comfort and safety?
The series offers a spacious cab with wide visibility, ergonomic seating, fingertip or joystick controls, electronic steering with damping, and optional safety add-ons such as warning lamps and cold storage configuration.
