1500 Kg
CPD15L1
Electric Counterbalance Forklift Truck 1.5T
Contact Us
About the CPD15L1
The L1 Li-Ion 4 wheel counterbalance forklift truck from EP Equipment is the world‘s first real Li-Ion forklift truck. The chassis is designed around the advantages of Li-Ion technology.
Get a QuoteDatasheet

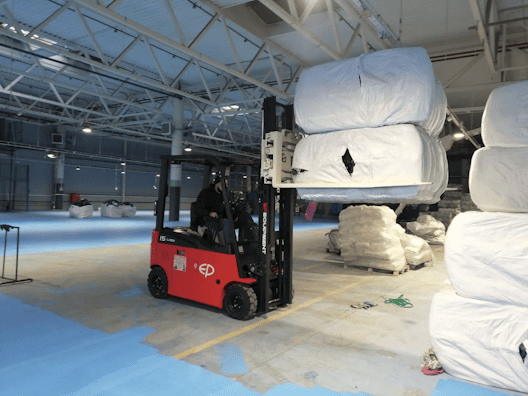

Product Application
The Water proof design makes it an ideal tool for outdoor use, even in the rain.
This robust electric forklift is also perfect for loading and unloading tasks.
Features
IPX4 Rated, Suitable for Outdoor Usage
All forklifts from the L1 series are IPX4 water protected. The trucks can work outside in the rain when other electric forklift trucks can not do the same job!
Performance Improvement of AC Motor
The optimized 20L1S is now equipped with all AC motors, which gives it higher performance.
Large Cabin
Due to the completely redesigned chassis, the L1 forklift comes with the largest legroom in the industry, eliminating a key traditional disadvantage associated with electric forklift trucks. Due to the compact battery, drivers have more than sufficient space for their legs, improving operator comfort when working in long shifts.
Request a quote
Specifications for the CPD15L1
| Name | Value |
|---|---|
| Manufacturer | EP |
| Model designation | CPD15L1 |
| Drive | Electric |
| Operator type | Seated |
| Rated capacity | 1500 kg |
| Load centre distance | 500 mm |
| Load distance, centre of drive axle to fork | 405 mm |
| Wheelbase | 1470 mm |
| Service weight | 2640 kg |
| Axle loading, laden front/rear | 3615/525 kg |
| Axle loading, unladen front/rear | 1190/1450 kg |
| Tyres | Solid rubber |
| Tyre size, front | 18X7-8mm |
| Tyre size, rear | 5.00-8mm |
| Wheels, number front/rear (x=drive wheels) | 2x/2 |
| Tread width, front | 910 mm |
| Tread width, rear | 920 mm |
| Max lift height | 5000 mm |
| Tilt of mast/fork carriage forward/backward | 6/11 ° |
| Height, mast lowered | 1990 mm |
| Free lift | 105 mm |
| Lift | ["3000"] mm |
| Height, mast extended | 4028 mm |
| Height of overhead guard (cabin) | 2080 mm |
| Seat height relating to SIP/stand height | 1050 mm |
| Coupling height | 360 mm |
| Overall length | 3270 mm |
| Length to face of forks | 2200 mm |
| Overall width | 1080 mm |
| Fork dimensions | 40×100×1070 mm |
| Fork carriage ISO 2328, class/type A, B | 2A |
| Fork carriage width | 1040 mm |
| Ground clearance, laden, below mast | 110 mm |
| Ground clearance, centre of wheelbase | 105 mm |
| Aisle width for pallets 1000×1200 crossways | 3685 mm |
| Aisle width for pallets 800 × 1200 lengthways | 3885 mm |
| Turning radius | 2080 mm |
| Travel speed, laden/unladen | 10.5/14 km/h |
| Lift speed, laden/unladen | 0.3/0.42 m/s |
| Lowering speed, laden/unladen | 0.42/0.45 m/s |
| Max. gradeability, laden/unladen | 10.5/14 % |
| Service brake | Electromagnetic |
| Parking brake | Electromagnetic |
| Drive motor rating S2 60 min | 6 kW |
| Lift motor rating at S3 15% | 7.5 kW |
| Battery voltage | 48 V |
| Battery nominal capacity K5 | 280 Ah |
| Battery type | Li-Ion |
| Battery weight | 190 kg |
| Type of drive unit | AC |
| Steering design | Hydraulic |
| Sound pressure level at the driver's seat | 70 dB(A) |
FAQs
What is the load capacity of the CPD15/20L1?
The CPD15L1 model supports a rated load of 1,500 kg, and the CPD20L1 supports 2,000 kg. These capacities make the truck suitable for a wide range of material handling tasks.
How high can the mast lift?
Mast lift height depends on the mast option selected. The L1 series supports standard forklift mast configurations up to industry-standard lift heights suitable for warehouse racking. (Please consult technical datasheets for the exact mast variants.)
What is the battery type and how long to charge?
The truck uses a lithium-ion battery engineered by EP. It fully charges in approximately 2.5 hours and supports opportunity charging of up to 7 % in just 10 minutes, increasing flexibility during operations.
Can it be used outdoors or in wet conditions?
Yes. The CPD15/20L1 is rated to IPX4 for water ingress protection, allowing it to handle light rain and wet conditions without compromising electrical components or safety.
What operator safety or comfort features are included?
The truck offers the industry’s widest cabin legroom, reducing fatigue and improving posture over long shifts. The compact battery design enables better visibility and stability, and all components are designed to support smooth, responsive control—enhancing both comfort and safety.
